| Varenummer | B125HAN02.0 |
| Mærke | AUO |
| Størrelse | 12.5 |
| Ansøgning | NBPC |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 700:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| panel mærke | AUO |
| panel model | B125HAN02.0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.5 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | AHVA, Normally Black, Transmissive |
| aktivt område | 276.48×155.52 mm |
| omrids | 300.4×180.9×3 mm |
| form stil | Slim (PCBA Flat, Depth ≤3.2mm) |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |

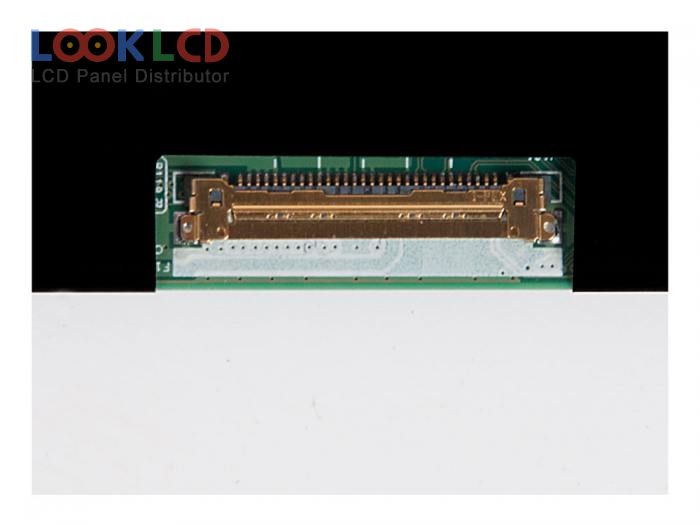

| signal interface | eDP (2 Lanes), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| B173HTN01.1 | AUO | 17.3 | 1920×1080 |
| CLAA154WA01 | CPT | 15.4 | 1280×800 |
| LP140WH1-TLA1 | LG Display | 14.0 | 1366×768 |
| LP141WP1-TLA2 | LG Display | 14.1 | 1440×900 |
| LP141WX5-TLC1 | LG Display | 14.1 | 1280×800 |
| LTD121EDFN | TOSHIBA | 12.1 | 1024×768 |
| LTN140AT22-W01 | Samsung | 14.0 | 1366×768 |
| LTN150XG-L02 | Samsung | 15.0 | 1024×768 |
| LTN173KT01-B07 | Samsung | 17.3 | 1600×900 |
| LTN184KT01-F01 | Samsung | 18.4 | 1680×945 |
