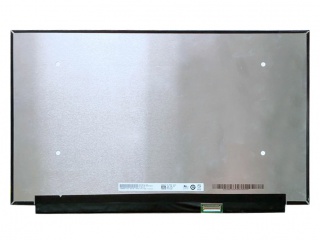

| Varenummer | B156ZAN03.5 |
| Mærke | AUO |
| Størrelse | 15.6 |
| Ansøgning | Laptop |
| Løsning | 3840×2160 |
| Sammensætning | LCM , LTPS TFT-LCD |
| Lysstyrke | |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| fabrikant | AUO |

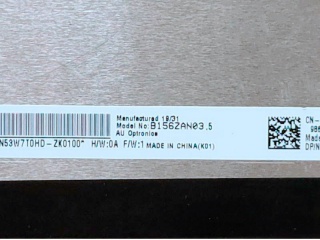

| modelnavn | B156ZAN03.5 (AUO35EB) |
| skærmstørrelse | 15.6 inch |
| skærmtype | LCM , LTPS TFT-LCD |
| pixel antal | 3840(RGB)×2160 (UHD) 283PPI |
| arrangement | RGB Vertical Stripe |
| aktivt område (mm) | 344.218 × 193.622 (H×V) |
| omrids (mm) | 349.22 × 214.21 × 2.6 (H×V×D) |
| rammeareal (mm) | - |
| behandling | Antiglare |
| luminans | 300 cd/m² (Typ.) |
| kontrastforhold | 1000 : 1 (Typ.) (TM) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10) |
| respons | 30 (Typ.)(Tr+Td) ms |
| god udsigt kl | Symmetry |
| arbejdstilstand | AHVA, Normally Black, Transmissive |
| farvedybde | 16.7M 100% sRGB |
| baggrundsbelysning | WLED , 15K hours , With LED Driver |
| konturform | Slim (PCBA Flat, T≤3.2mm) |
| anvendes til | Laptop |
| opdateringshastighed | 60Hz |
| berøringsskærm | Without |

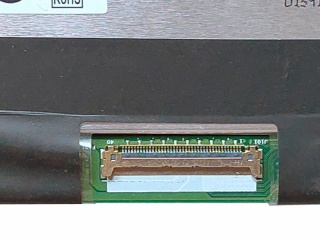

| signaltype | eDP (4 Lanes) , eDP1.3 , 40 pins Connector |
| spændingsforsyning | 3.3V (Typ.) |
| max. vurderinger | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
