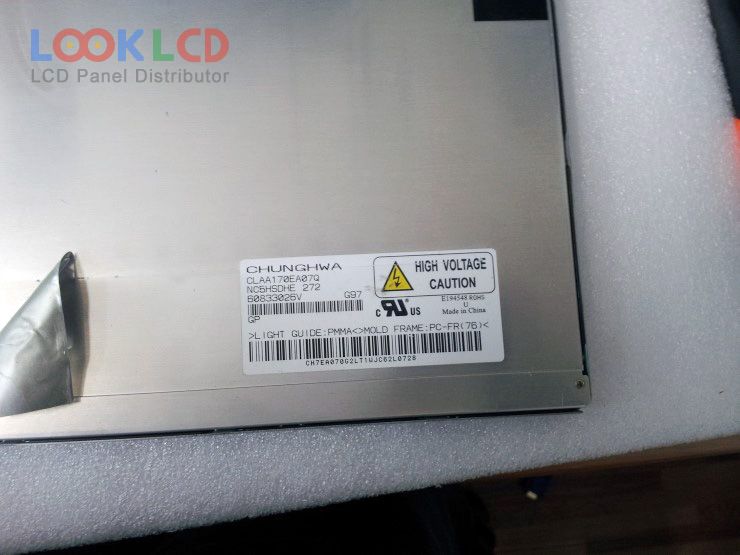

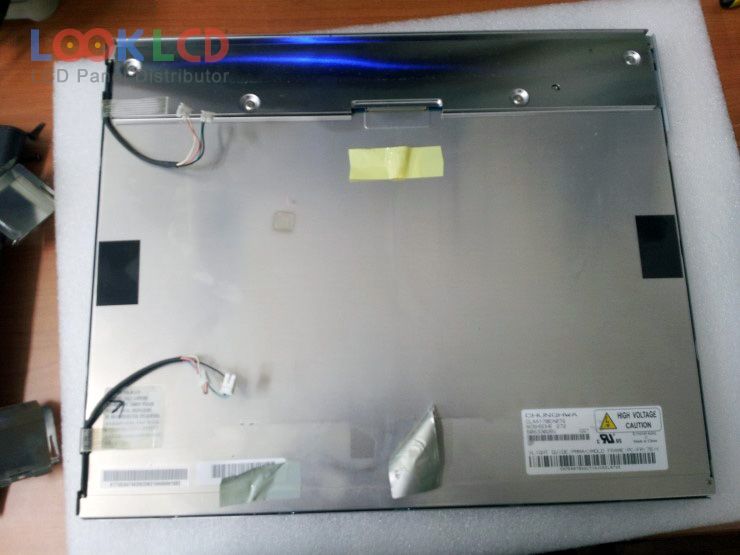

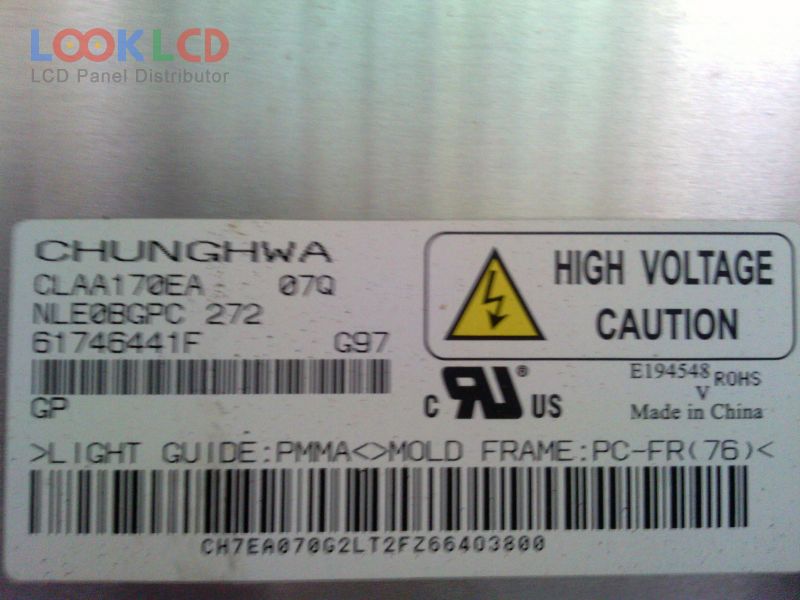

| Varenummer | CLAA170EA07Q |
| Mærke | CPT |
| Størrelse | 17.0 |
| Ansøgning | DMPC |
| Løsning | 1280×1024 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | CPT |
| panel model | CLAA170EA07Q 2 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 17.0 inch |
| løsning | 1280(RGB)×1024 , SXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 337.92×270.336 mm |
| omrids | 358.5×296.5×17.5 mm |
| overflade | Antiglare |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 16.7M (6-bit + Hi-FRC), CIE193172% |
| responstid | 8 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| indgangsspænding | 5.0V (Typ.) |
| rohs: | |
| Ansøgning | DMPC |
| CLAA170EA07 | CPT | 17.0 | 1280×1024 |
| CLAA170EA07Q | CPT | 17.0 | 1280×1024 |
| CLAA170EA10 | CPT | 17.0 | 1280×1024 |
| CLAA170ES01E | CPT | 17.0 | 1280×1024 |
| LM170E03-TLH1 | LG Display | 17.0 | 1280×1024 |
| LTM170EI-A01 | Samsung | 17.0 | 1280×1024 |
| LTN170BT09-001 | Samsung | 17.0 | 1440×900 |
| LTN170WU-L01 | Samsung | 17.0 | 1920×1200 |
| M170ETN01.1 | AUO | 17.0 | 1280×1024 |
| M170EU01 V0 | AUO | 17.0 | 1280×1024 |
| LC215EUE-TEA1 | LG Display | 21.5 | 1920×1080 |
| LM190E09-TLD1 | LG Display | 19.0 | 1280×1024 |
| LM195WD2-SLA1 | LG Display | 19.5 | 1600×900 |
| LM215WF3-SLA1 | LG Display | 21.5 | 1920×1080 |
| LTM150XH-L04 | Samsung | 15.0 | 1024×768 |
| M170E5-L08 | Innolux | 17.0 | 1280×1024 |
| M236HJK-L5B | Innolux | 23.6 | 1920×1080 |
| MT220WW01 V.6 | Innolux | 22.0 | 1680×1050 |
| SVA156WX1-01TB | SVA-NEC | 15.6 | 1366×768 |
| TD170WGCA1 | TPO | 17.0 | 1280×1024 |
