| Varenummer | G150XG01 V1 |
| Mærke | AUO |
| Størrelse | 15.0 |
| Ansøgning | IA |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 700:1 |
| Farver | 262K/16.2M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | AUO |

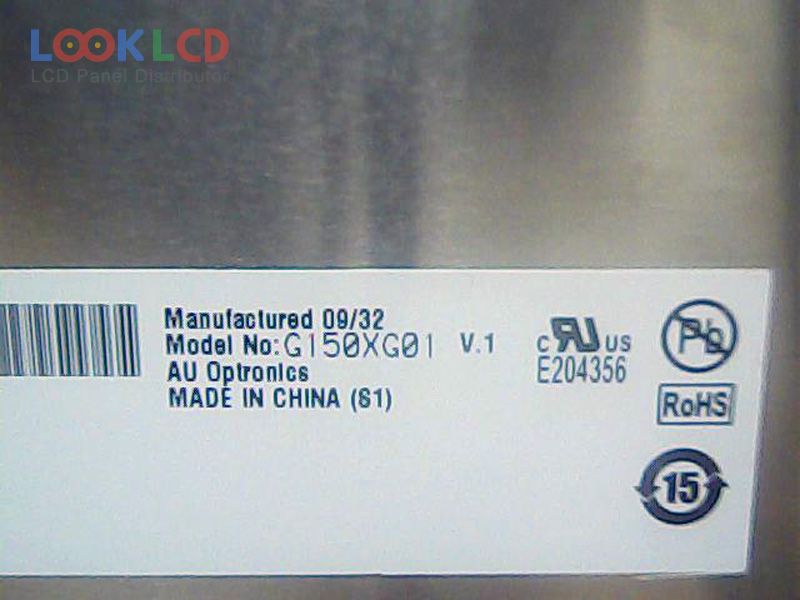

| panel model | G150XG01 V1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.0 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 304.128×228.096 mm |
| omrids | 326.5×253.5×12 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 262K/16.2M (6-bit / 6-bit + FRC), CIE193165% |
| responstid | 5.7/2.3 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
