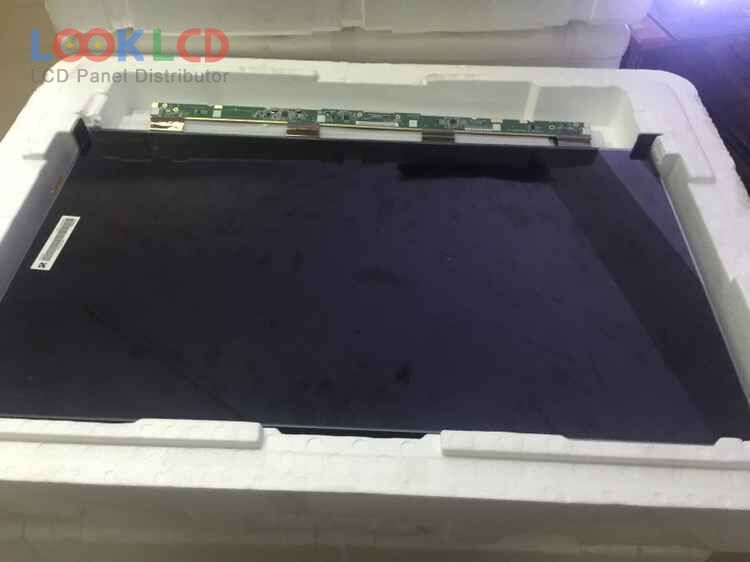

| Varenummer | LC315TU3A |
| Mærke | PANDA |
| Størrelse | 31.5 |
| Ansøgning | LCTV |
| Løsning | 1366×768 |
| Sammensætning | CELL |
| Lysstyrke | 0 |
| CR | 5000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | No B/L |
| Interface | LVDS |
| panel mærke | PANDA |
| panel model | LC315TU3A |
| paneltype | a-Si TFT-LCD , CELL |
| panelstørrelse | 31.5 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | UV2A, Normally Black, Transmissive |
| aktivt område | 697.685×392.256 mm |
| omrids | 715.7×455.5 mm |
| overflade | Antiglare, Hard coating (3H) |
| glas dybde | 0.70+0.70 mm |
| kontrastforhold | 5000:1 (Typ.) |
| vise farver | 16.7M (6-bit + Hi-FRC) |
| responstid | 7 (Typ.)(G to G) |
| synsvinkel | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| signal interface | LVDS (1 ch, 8-bit), 30 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | LCTV |
