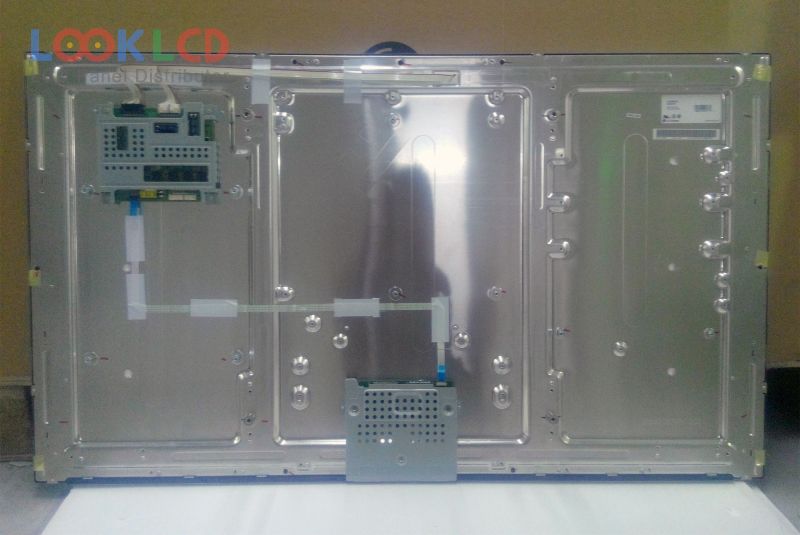

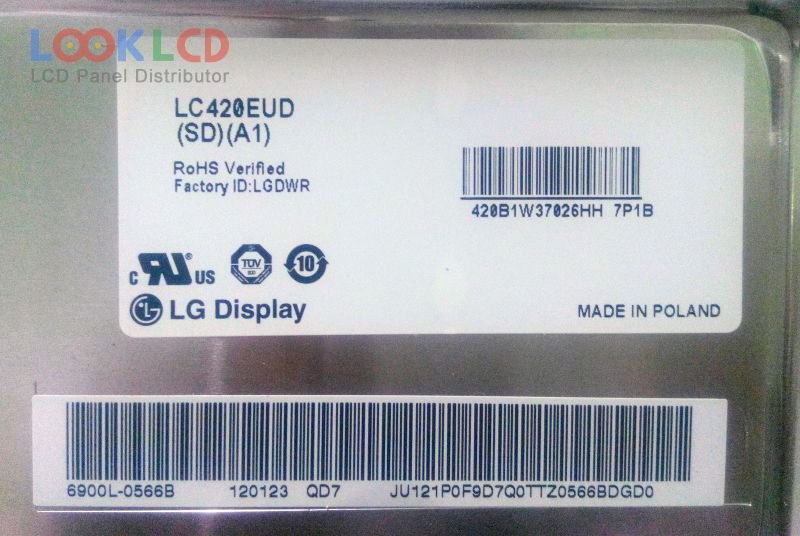

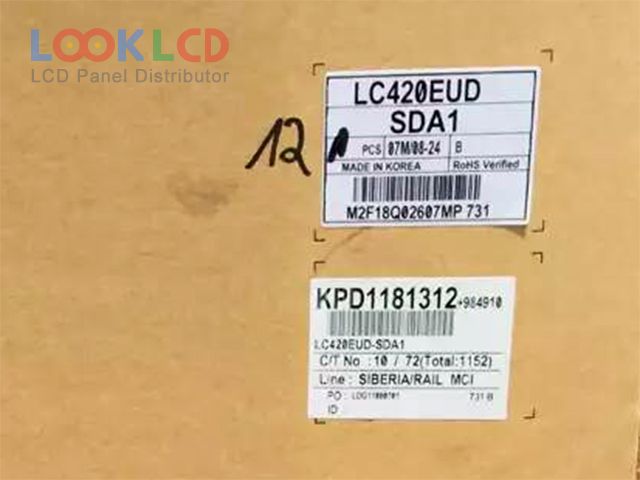

| Varenummer | LC420EUD-SDA1 |
| Mærke | LG Display |
| Størrelse | 42 |
| Ansøgning | LCTV |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 1600:1 |
| Farver | 16.7M/1.06B |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | LG Display |
| panel model | LC420EUD-SDA1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 42 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | S-IPS, Normally Black, Transmissive |
| aktivt område | 930.24×523.26 mm |
| omrids | 968.4×564 mm |
| overflade | Antiglare (Haze 10%), Hard coating (3H) |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 1600:1 (Typ.) |
| vise farver | 16.7M/1.06B (8-bit / 8-bit + Dithering), CIE193172% |
| responstid | 5/8 (Typ.)(Tr/Td) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 120Hz+120Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (4 ch, 8/10-bit), 92 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | LCTV |
