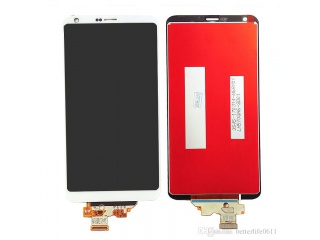

| Varenummer | LH570QH6-SD01 |
| Mærke | LG Display |
| Størrelse | 5.7 |
| Ansøgning | Mobile Phone |
| Løsning | 1440×2880 |
| Sammensætning | Assembly , a-Si TF |
| Lysstyrke | |
| CR | 1500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | 4S3P |
| Interface | MIPI |
| fabrikant | LG Display |
| skærmstørrelse | 5.7 inch |
| pixel antal | 1440(RGB)×2880 564PPI |
| aktivt område (mm) | 64.8 × 129.6 (H×V) |
| rammeareal (mm) | - |
| luminans | 500 cd/m² (Typ.) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10) |
| god udsigt kl | Symmetry |
| farvedybde | 16.7M 85% NTSC |
| masse | 26.6±2.7g |
| opdateringshastighed | 60Hz |
| signaltype | MIPI (4 data lanes) , 54 pins Connector |
| spændingsforsyning | 1.8/3.3/5.5/-5.5V (Typ.)(VDDI/VPNL/DDVDL/DDVDH) |
| max. vurderinger | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| modelnavn | LH570QH6-SD01 |
| skærmtype | Assembly , a-Si TFT-LCD |
| arrangement | RGB Vertical Stripe |
| omrids (mm) | 68.72 × 145.7 (H×V×D) |
| behandling | Hard coating |
| kontrastforhold | 1500 : 1 (Typ.) (TM) |
| respons | 25 (Typ.)(Tr+Td) ms |
| arbejdstilstand | - |
| baggrundsbelysning | 4S3P WLED , No Driver |
| anvendes til | Mobile Phone |
| berøringsskærm | PCAP |
