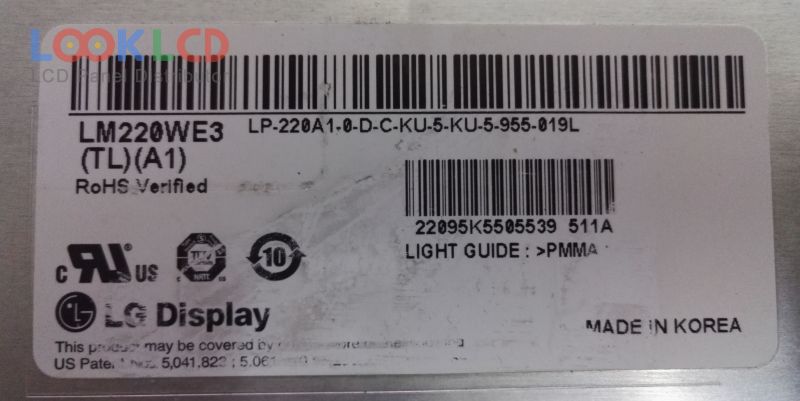

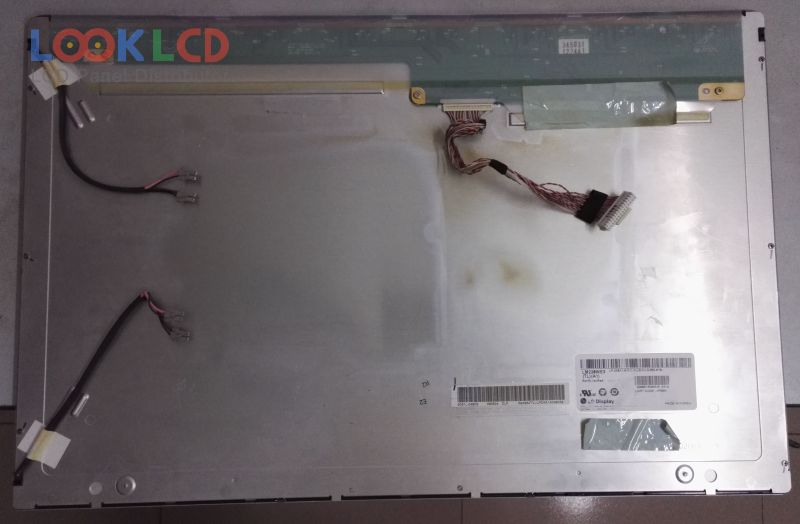

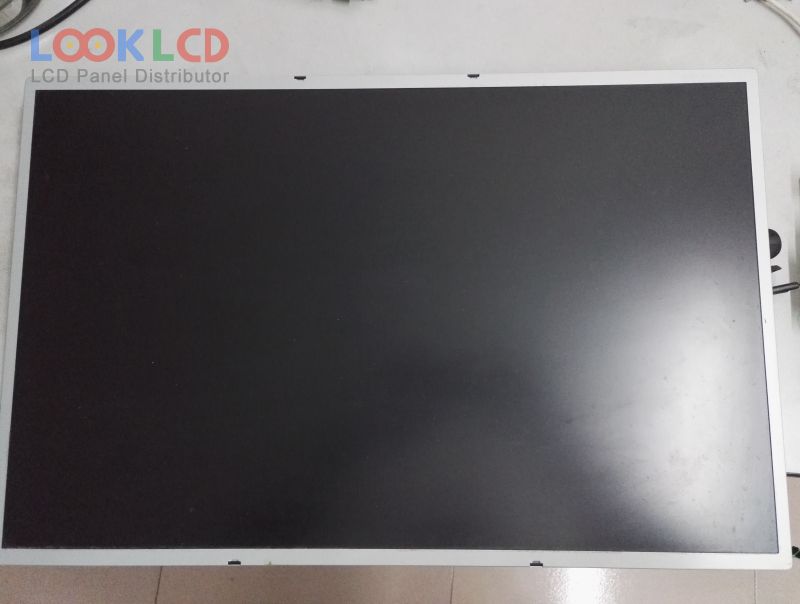

| Varenummer | LM220WE3-TLA1 |
| Mærke | LG Display |
| Størrelse | 22.0 |
| Ansøgning | DMPC |
| Løsning | 1680×1050 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | LG.Philips LCD |
| panel model | LM220WE3-TLA1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 22.0 inch |
| løsning | 1680(RGB)×1050 , WSXGA+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 473.76×296.1 mm |
| omrids | 493.7×320.1 mm |
| overflade | Antiglare (Haze 25%), Hard coating (3H) |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (6-bit + Hi-FRC) |
| responstid | 1.3/3.7 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/75/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | DMPC |
