| Varenummer | LP156WF4-SLB2 |
| Mærke | LG Display |
| Størrelse | 15.6 |
| Ansøgning | NBPC |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | LG Display |

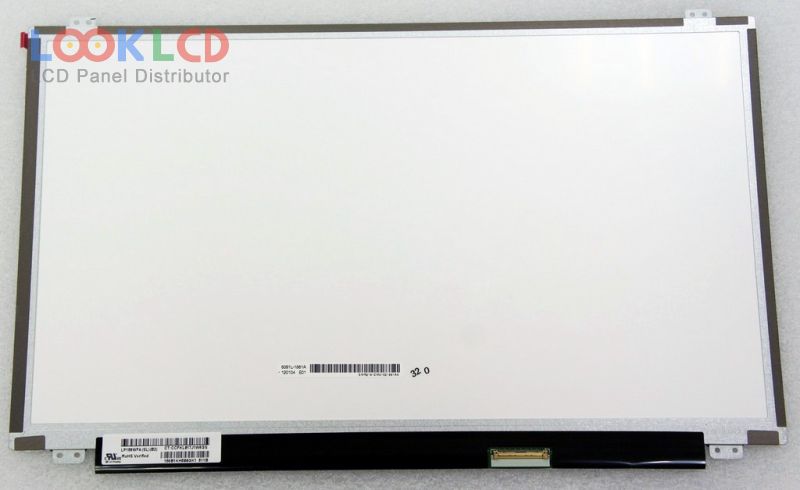

| panel model | LP156WF4-SLB2 5 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.6 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | AH-IPS, Normally Black, Transmissive |
| aktivt område | 344.16×193.59 mm |
| omrids | 359.5×224.13×3.4 mm |
| form stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Min.) |
| vise farver | 262K (6-bit), CIE193160% |
| responstid | 35 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6 stringsWLEDEmbedded (LED Driver) |
| signal interface | LVDS (2 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| LP156WD1-TPB1 | LG Display | 15.6 | 1600×900 |
| LP156WF1-TLB1 | LG Display | 15.6 | 1920×1080 |
| LP156WF1-TLB2 | LG Display | 15.6 | 1920×1080 |
| LP156WF1-TPB1 | LG Display | 15.6 | 1920×1080 |
| LP156WF4-SLB1 | LG Display | 15.6 | 1920×1080 |
| LP156WH1-TLA3 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLE1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLQ1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TPS2 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLN2 | LG Display | 15.6 | 1366×768 |
| B133HAN02.0 | AUO | 13.3 | 1920×1080 |
| B133XW03 V0 | AUO | 13.3 | 1366×768 |
| HT121X01-101 | HYDIS | 12.1 | 1024×768 |
| LP154W01-TLF1 | LG Display | 15.4 | 1280×800 |
| LP173WD1-TLC2 | LG Display | 17.3 | 1600×900 |
| LTD121EQ3B | TOSHIBA | 12.1 | 1280×800 |
| LTN141AT16-003 | Samsung | 14.1 | 1280×800 |
| LTN156AT02-A11 | Samsung | 15.6 | 1366×768 |
| N141C1-L02 | Innolux | 14.1 | 1440×900 |
| NT156WHM-N42 | BOE | 15.6 | 1366×768 |
