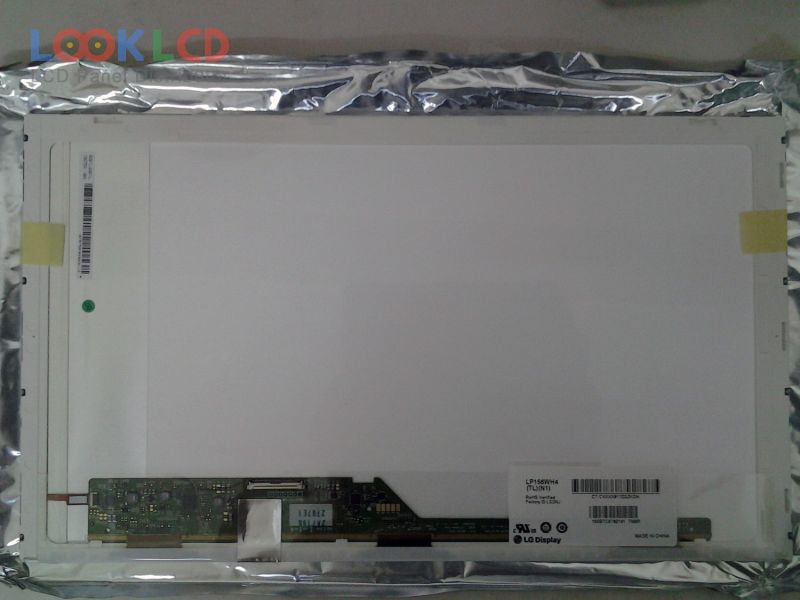

| Varenummer | LP156WH4-TLN1 |
| Mærke | LG Display |
| Størrelse | 15.6 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | LG Display |
| panel model | LP156WH4-TLN1 61 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.6 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 344.232×193.536 mm |
| omrids | 359.3×209.5×5.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%) |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193160% |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4 stringsWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| LP156WF1-TLE1 | LG Display | 15.6 | 1920×1080 |
| LP156WF3-SLB2 | LG Display | 15.6 | 1920×1080 |
| LP156WH2-TLG1 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLQB | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLR1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLA2 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLC1 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLN1 | LG Display | 15.6 | 1366×768 |
| LP156WHU-TPD1 | LG Display | 15.6 | 1366×768 |
| LP156WHU-TPG1 | LG Display | 15.6 | 1366×768 |
| B156XW04 V7 | AUO | 15.6 | 1366×768 |
| LP133WH2-TLL2 | LG Display | 13.3 | 1366×768 |
| LP154W02-TL10 | LG Display | 15.4 | 1680×1050 |
| LP154WX4-TLCB | LG Display | 15.4 | 1280×800 |
| LQ133K1LD4B | SHARP | 13.3 | 1280×800 |
| LQ150X1LBE1 | SHARP | 15.0 | 1024×768 |
| LTN121W3-L01 | Samsung | 12.1 | 1280×800 |
| LTN140AT07-L01 | Samsung | 14.0 | 1366×768 |
| LTN154AT01-A01 | Samsung | 15.4 | 1280×800 |
| LTN154U1-L02 | Samsung | 15.4 | 1920×1200 |
