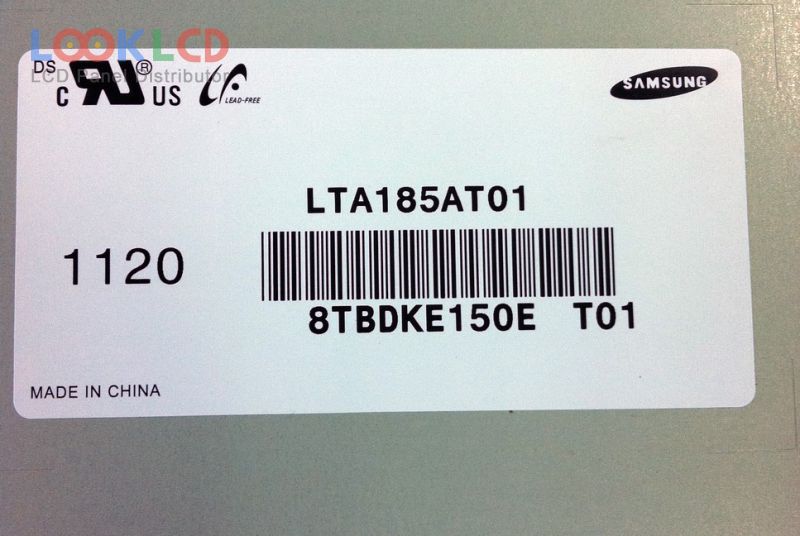

| Varenummer | LTA185AT01 |
| Mærke | Samsung |
| Størrelse | 18.5 |
| Ansøgning | LCTV |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 230 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTA185AT01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 18.5 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 409.8×230.4 mm |
| omrids | 430.4×254.6×10.7 mm |
| overflade | Antiglare (Haze 25%), Hard coating (3H) |
| lysstyrke | 230 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193172% |
| responstid | 6 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 21S1PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 30 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | LCTV |
