| Varenummer | LTF320HM01 |
| Mærke | Samsung |
| Størrelse | 31.5 |
| Ansøgning | LCTV |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 500 |
| CR | 4000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SAMSUNG |

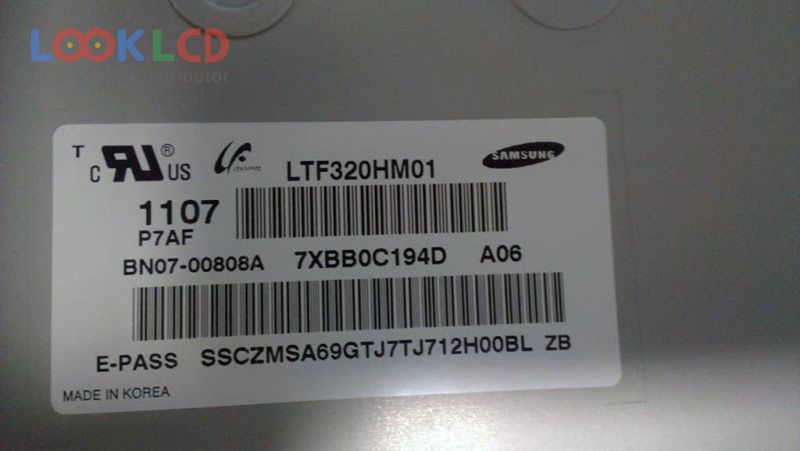

| panel model | LTF320HM01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 31.5 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | S-PVA, Normally Black, Transmissive |
| aktivt område | 698.4×392.85 mm |
| omrids | 760×450×50.2 mm |
| overflade | Antiglare (Haze 7%), Hard coating (3H) |
| lysstyrke | 500 cd/m² (Typ.) |
| kontrastforhold | 4000:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193172% |
| responstid | 8 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |

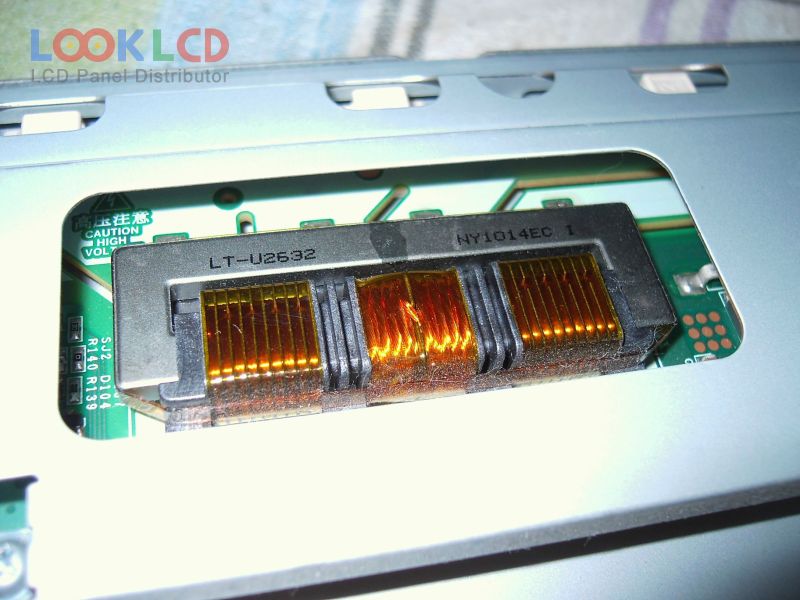

| lampe type | 4 pcsCCFLEmbedded (Inverter) |
| signal interface | LVDS (2 ch, 8-bit), 51 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | LCTV |
