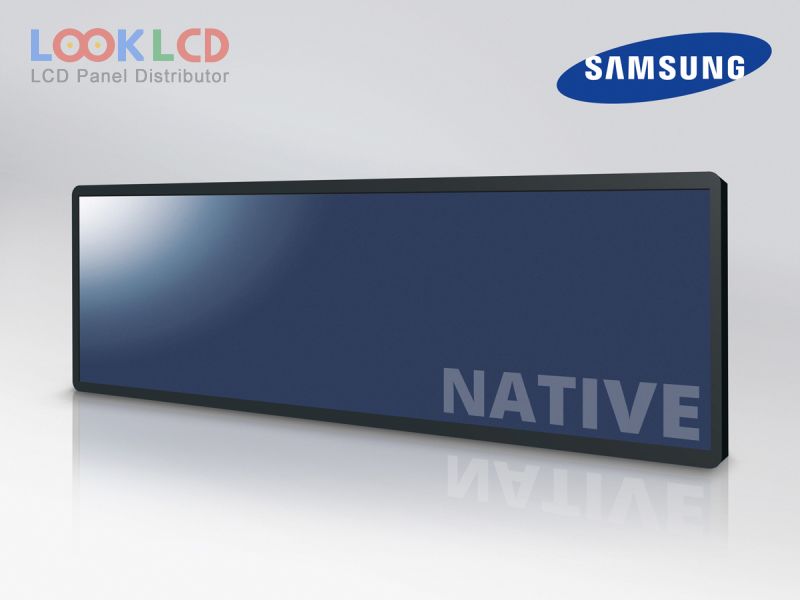

| Varenummer | LTI370LN01 |
| Mærke | Samsung |
| Størrelse | 37 |
| Ansøgning | PID |
| Løsning | 1920×540 |
| Sammensætning | LCM |
| Lysstyrke | 700 |
| CR | 4000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTI370LN01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 37 inch |
| løsning | 1920(RGB)×540 |
| visningstilstand | SPVA, Normally Black, Transmissive |
| aktivt område | 899.712×253.044 mm |
| omrids | 914.92×280.844×36.4 mm |
| overflade | Antiglare (Haze 44%) |
| lysstyrke | 700 cd/m² (Typ.) |
| kontrastforhold | 4000:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193172% |
| responstid | 8 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (2 ch, 10-bit), 51 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | PID |
