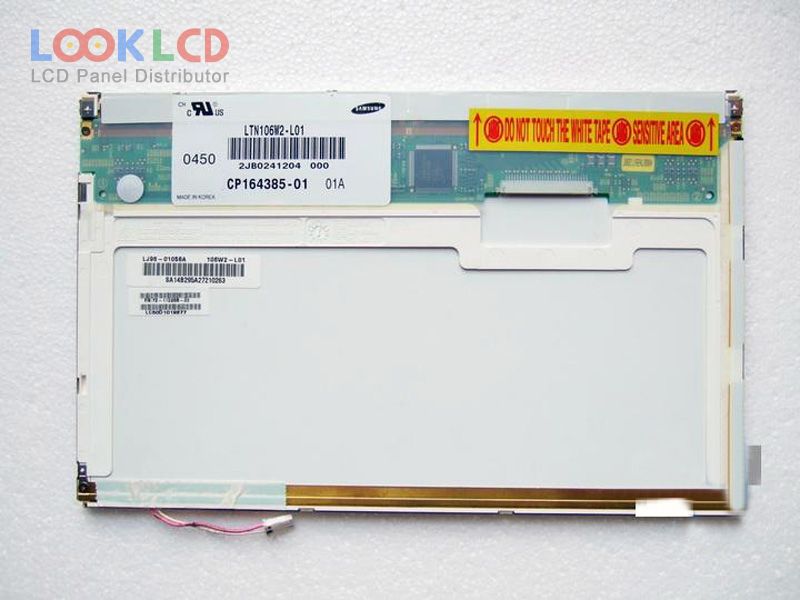

| Varenummer | LTN106W2-L01 |
| Mærke | Samsung |
| Størrelse | 10.6 |
| Ansøgning | NBPC |
| Løsning | 1280×768 |
| Sammensætning | LCM |
| Lysstyrke | 170 |
| CR | 250:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTN106W2-L01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.6 inch |
| løsning | 1280(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 230.4×138.24 mm |
| omrids | 243.4×152 mm |
| overflade | Antiglare (Haze 40%), Hard coating (2H) |
| lysstyrke | 170 cd/m² (Typ.) |
| kontrastforhold | 250:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 10/30 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/15/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
