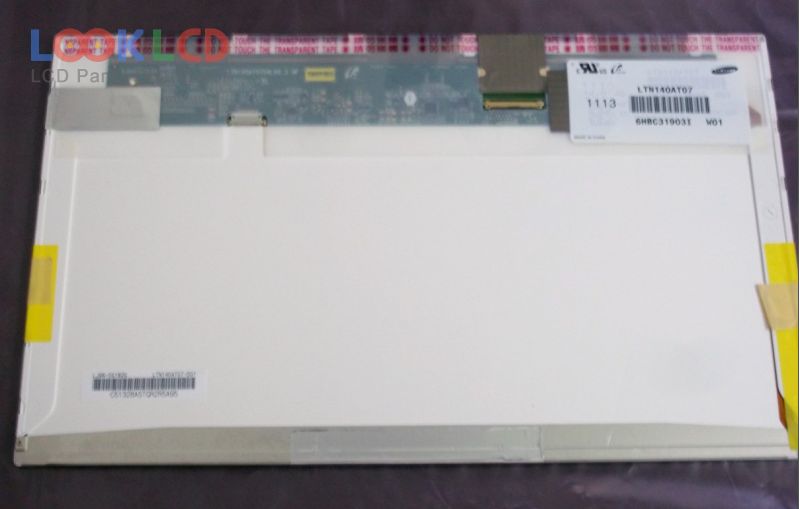

| Varenummer | LTN140AT07-W01 |
| Mærke | Samsung |
| Størrelse | 14.0 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTN140AT07-W01 30 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.0 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 309.399×173.952 mm |
| omrids | 323.5×192×5.2 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%), Hard coating (3H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Min.) |
| vise farver | 262K (6-bit) |
| responstid | 8 (Typ.)(Tr+Td) |
| synsvinkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 7S6PWLEDEmbedded (LED Driver) |

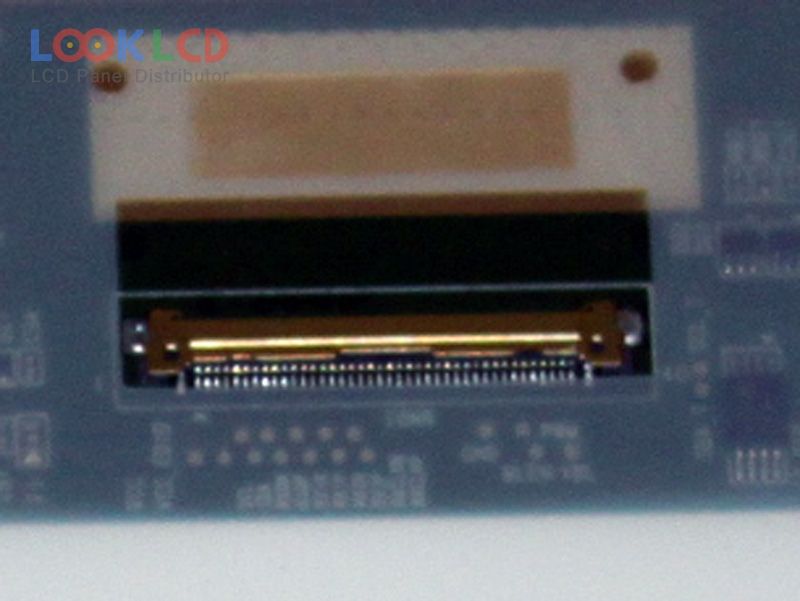

| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| LTN140AT06-A01 | Samsung | 14.0 | 1366×768 |
| LTN140AT07-306 | Samsung | 14.0 | 1366×768 |
| LTN140AT07-W01 | Samsung | 14.0 | 1366×768 |
| LTN140AT11-L02 | Samsung | 14.0 | 1366×768 |
| LTN140AT16-401 | Samsung | 14.0 | 1366×768 |
| LTN140AT20-401 | Samsung | 14.0 | 1366×768 |
| LTN140AT20-W05 | Samsung | 14.0 | 1366×768 |
| LTN140AT21-802 | Samsung | 14.0 | 1366×768 |
| LTN140AT22-W01 | Samsung | 14.0 | 1366×768 |
| LTN140AT22-W02 | Samsung | 14.0 | 1366×768 |
| B121EW09 V0 | AUO | 12.1 | 1280×800 |
| B141XG03 V2 | AUO | 14.1 | 1024×768 |
| B154SW01 V2 | AUO | 15.4 | 1680×1050 |
| B154SW02 V0 | AUO | 15.4 | 1680×1050 |
| LP140WF1-SPK1 | LG Display | 14.0 | 1920×1080 |
| LP140WH2-TLS1 | LG Display | 14.0 | 1366×768 |
| LP141WX5-TLB1 | LG Display | 14.1 | 1280×800 |
| LP171WP9-TLB2 | LG Display | 17.1 | 1440×900 |
| LTN160AT04-N01 | Samsung | 16.0 | 1366×768 |
| M140NWR2 R0 | IVO | 14.0 | 1366×768 |
