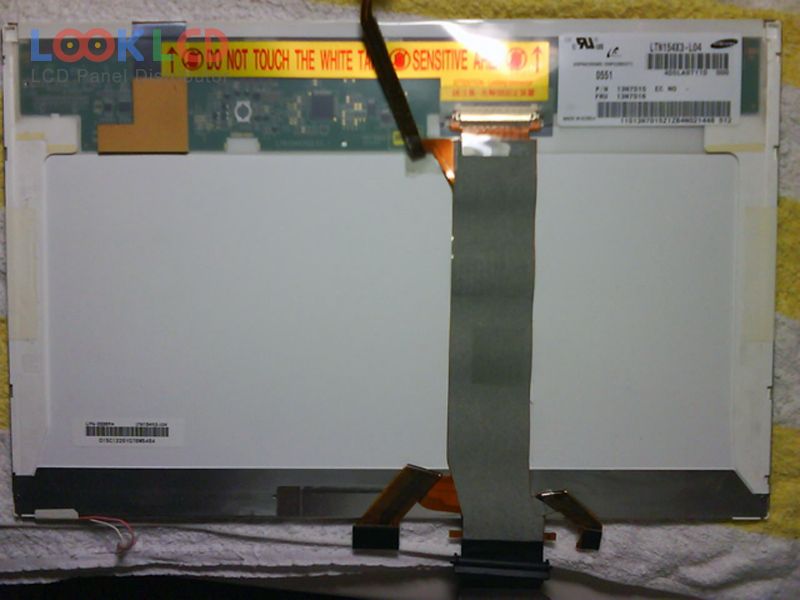

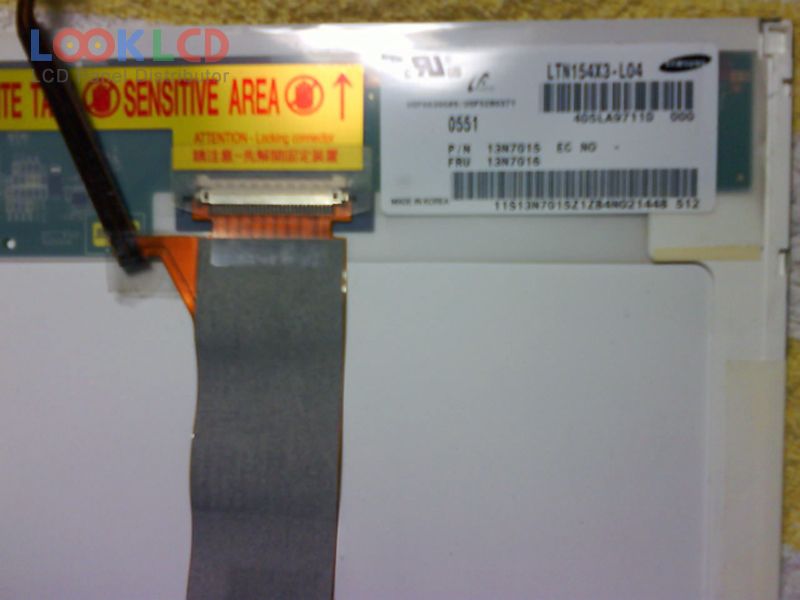

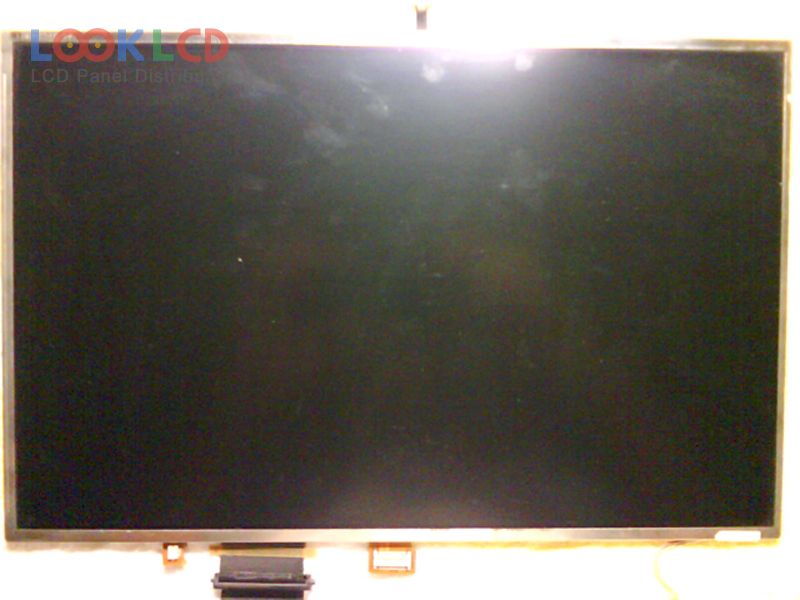

| Varenummer | LTN154X3-L04 |
| Mærke | Samsung |
| Størrelse | 15.4 |
| Ansøgning | NBPC |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTN154X3-L04 11 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.4 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 331.2×207 mm |
| omrids | 344×222×6.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Antiglare (Haze 42%), Hard coating (2H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 65/65/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| LTN154AT01-A03 | Samsung | 15.4 | 1280×800 |
| LTN154AT09-101 | Samsung | 15.4 | 1280×800 |
| LTN154AT12-D01 | Samsung | 15.4 | 1280×800 |
| LTN154BT07-S01 | Samsung | 15.4 | 1440×900 |
| LTN154U1-L03 | Samsung | 15.4 | 1920×1200 |
| LTN154W1-L01 | Samsung | 15.4 | 1440×900 |
| LTN154X3-L04 | Samsung | 15.4 | 1280×800 |
| LTN154X3-L09-G | Samsung | 15.4 | 1280×800 |
| LTN154X3-L0D | Samsung | 15.4 | 1280×800 |
| LTN154XB-L01 | Samsung | 15.4 | 1280×800 |
| B141XG14 V1 | AUO | 14.1 | 1024×768 |
| CLAA154WB04N | CPT | 15.4 | 1280×800 |
| LP104S3 | LG Display | 10.4 | 800×600 |
| LP133WD2-SLB1 | LG Display | 13.3 | 1600×900 |
| LP140WD1-TLD2 | LG Display | 14.0 | 1600×900 |
| LP171WP4-TLP1 | LG Display | 17.1 | 1440×900 |
| LTN140AT28-W01 | Samsung | 14.0 | 1366×768 |
| N121I3-L03 | Innolux | 12.1 | 1280×800 |
| N133I1-L01 | Innolux | 13.3 | 1280×800 |
| N140BGE-L22 | Innolux | 14.0 | 1366×768 |
