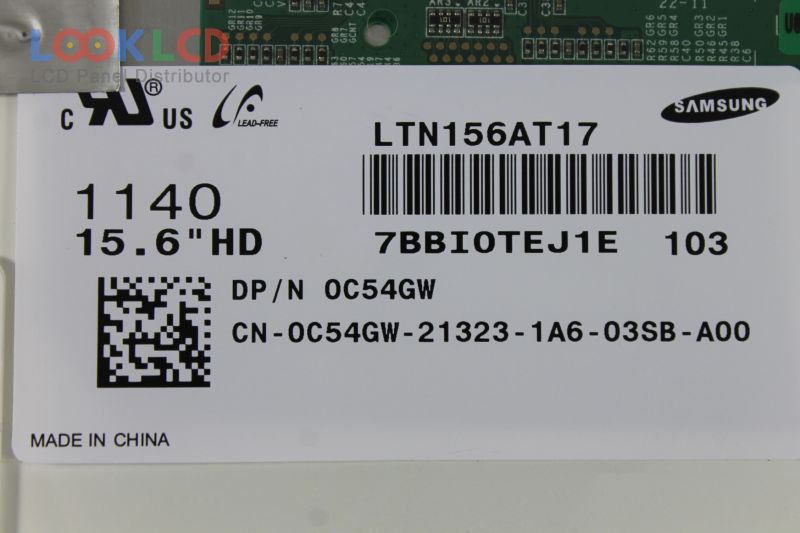

| Varenummer | LTN156AT17-103 |
| Mærke | Samsung |
| Størrelse | 15.6 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTN156AT17-103 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.6 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 344.232×193.536 mm |
| omrids | 359.3×209.5×5.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Hard coating (3H) |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Min.) |
| vise farver | 262K (6-bit), CIE193160% |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 9S4PWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| LTN156AT01-A01 | Samsung | 15.6 | 1366×768 |
| LTN156AT01-U01 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-B01 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-S01 | Samsung | 15.6 | 1366×768 |
| LTN156AT16-401 | Samsung | 15.6 | 1366×768 |
| LTN156AT17-103 | Samsung | 15.6 | 1366×768 |
| LTN156AT24-P01 | Samsung | 15.6 | 1366×768 |
| LTN156AT32-401 | Samsung | 15.6 | 1366×768 |
| LTN156AT34-D01 | Samsung | 15.6 | 1366×768 |
| LTN156AT35-W02 | Samsung | 15.6 | 1366×768 |
| B101EW02 V0 | AUO | 10.1 | 1280×720 |
| B121EW10 V0 | AUO | 12.1 | 1280×800 |
| HT14X13-101 | HYDIS | 14.1 | 1024×768 |
| LP150X08-A3 | LG Display | 15.0 | 1024×768 |
| LP156WHU-TPG1 | LG Display | 15.6 | 1366×768 |
| LQ141X1LH03 | SHARP | 14.1 | 1024×768 |
| LTM11C307S | TOSHIBA | 11.3 | 1024×768 |
| LTN156AT02 | Samsung | 15.6 | 1366×768 |
| N141C1-L01 | Innolux | 14.1 | 1440×900 |
| N154Z1-L02 | Innolux | 15.4 | 1680×1050 |
