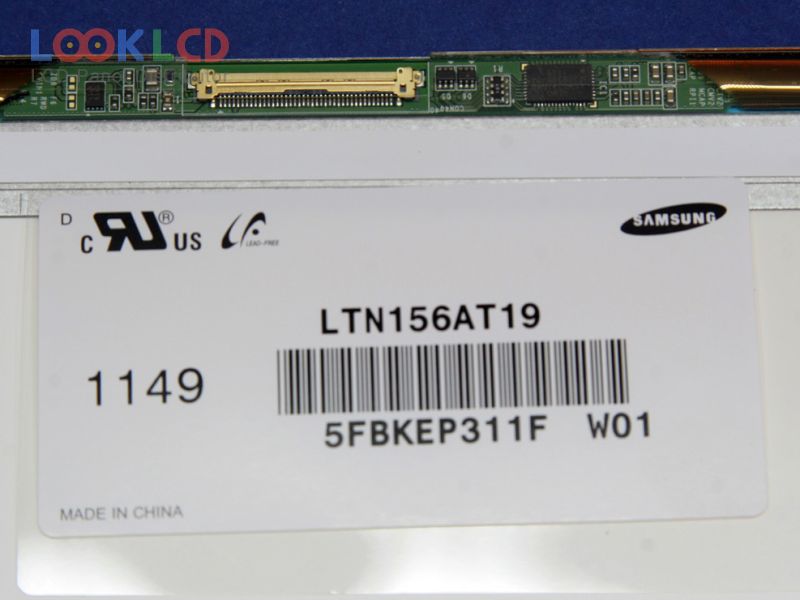

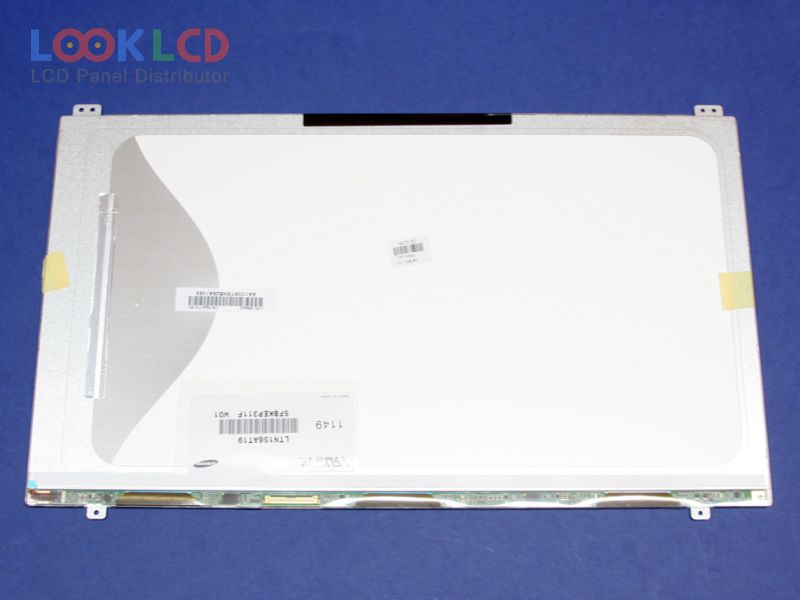

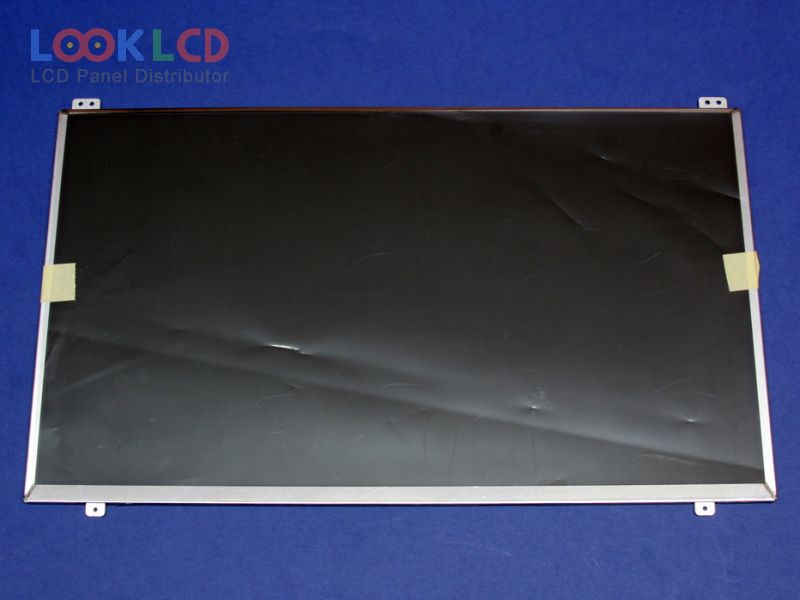

| Varenummer | LTN156AT19-W01 |
| Mærke | Samsung |
| Størrelse | 15.6 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTN156AT19-W01 3 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.6 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 344.232×193.536 mm |
| omrids | 359.3×222.45×4 mm |
| form stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| overflade | Antiglare (Haze 25%), Hard coating (2H) |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Min.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 45/45/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 9S4PWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| LTN156AT01-B02 | Samsung | 15.6 | 1366×768 |
| LTN156AT01-U01 | Samsung | 15.6 | 1366×768 |
| LTN156AT01-V01 | Samsung | 15.6 | 1366×768 |
| LTN156AT02-W01 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-H02 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-S01 | Samsung | 15.6 | 1366×768 |
| LTN156AT09-B02 | Samsung | 15.6 | 1366×768 |
| LTN156AT19-001 | Samsung | 15.6 | 1366×768 |
| LTN156AT20-W01 | Samsung | 15.6 | 1366×768 |
| LTN156AT30-W01 | Samsung | 15.6 | 1366×768 |
| B116XTB01.0 | AUO | 11.6 | 1366×768 |
| B121EW09 V2 | AUO | 12.1 | 1280×800 |
| B156XTN03.5 | AUO | 15.6 | 1366×768 |
| HT141WXB-100 | BOE | 14.1 | 1280×800 |
| LM12S389 | SHARP | 12.1 | 800×600 |
| LP154WE3-TLA1 | LG Display | 15.4 | 1680×1050 |
| LT133EE09C00 | TOSHIBA | 13.3 | 1366×768 |
| LTN140AT22-W01 | Samsung | 14.0 | 1366×768 |
| LTN156AT30-W01 | Samsung | 15.6 | 1366×768 |
| LTN156AT35-W01 | Samsung | 15.6 | 1366×768 |
