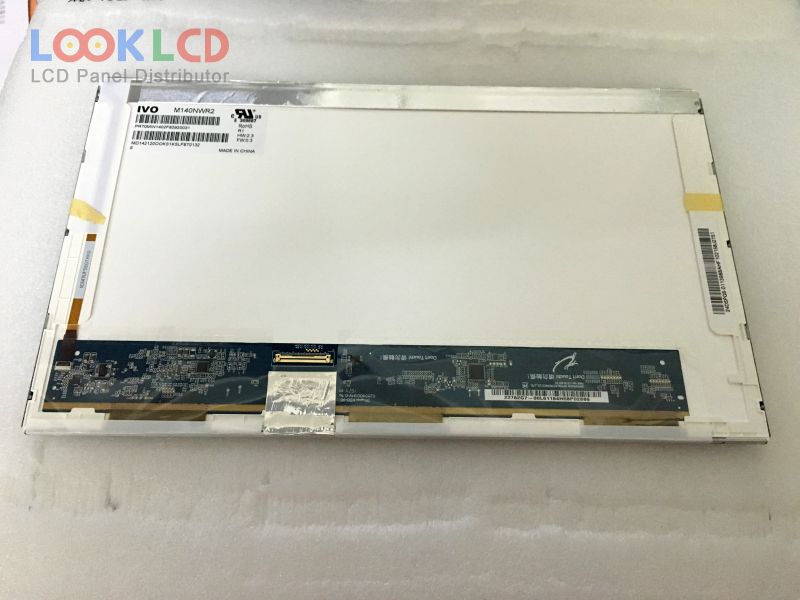

| Varenummer | M140NWR2 R1 |
| Mærke | IVO |
| Størrelse | 14.0 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | IVO |
| panel model | M140NWR2 R1 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.0 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 309.399×173.952 mm |
| omrids | 323.5×192×5.2 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%), Hard coating |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 8 (Typ.)(Tr+Td) |
| synsvinkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| B101EW01 V1 | AUO | 10.1 | 1280×720 |
| B121EW10 V1 | AUO | 12.1 | 1280×800 |
| LP140WH2-TLT1 | LG Display | 14.0 | 1366×768 |
| LT121SL-105 | Samsung | 12.1 | 800×600 |
| LTN121AT07-L02 | Samsung | 12.1 | 1280×800 |
| LTN121XL01-N03 | Samsung | 12.1 | 1024×768 |
| LTN141X8-L00 | Samsung | 14.1 | 1024×768 |
| LTN150PG-L03 | Samsung | 15.0 | 1400×1050 |
| LTN170WX-L06 | Samsung | 17.0 | 1440×900 |
| TX38D88VC1GAA | KOE | 15.0 | 1024×768 |
