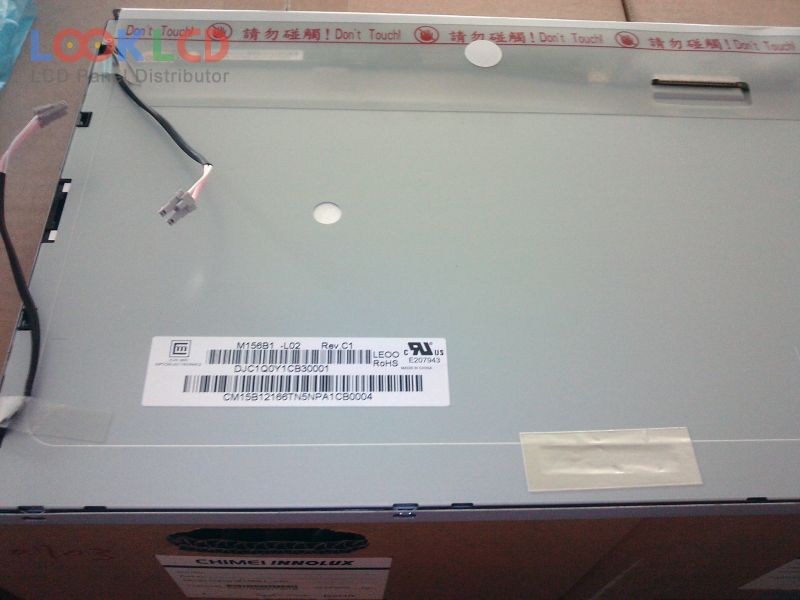

| Varenummer | M156B1-L02 |
| Mærke | Innolux |
| Størrelse | 15.6 |
| Ansøgning | DMPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | CMO |
| panel model | M156B1-L02 4 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.6 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 344.232×193.536 mm |
| omrids | 363.8×215.9×14.8 mm |
| overflade | Antiglare (Haze 25%), Hard coating (3H) |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193165% |
| responstid | 2/6 (Typ.)(Tr/Td) |
| synsvinkel | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 30 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | DMPC |
| B156XW03 V1 | AUO | 15.6 | 1366×768 |
| LP156WH2-TLRA | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLT2 | LG Display | 15.6 | 1366×768 |
| LTN156AT05-B01 | Samsung | 15.6 | 1366×768 |
| LTN156AT06-001 | Samsung | 15.6 | 1366×768 |
| LTN156AT29-W02 | Samsung | 15.6 | 1366×768 |
| M156B1-L01 | Innolux | 15.6 | 1366×768 |
| M156B1-L02 | Innolux | 15.6 | 1366×768 |
| M156B3-L01 | Innolux | 15.6 | 1366×768 |
| TMS156WX1-01TB | Tianma | 15.6 | 1366×768 |
| CLAA215FA01 | CPT | 21.5 | 1920×1080 |
| HT170E01-300 | BOE | 17.0 | 1280×1024 |
| LM201U04-A3KC | LG Display | 20.1 | 1600×1200 |
| LM201WE4-TLB2 | LG Display | 20.1 | 1680×1050 |
| LM230WF5-TLF4 | LG Display | 23.0 | 1920×1080 |
| LTM15C428S | TOSHIBA | 15.0 | 1024×768 |
| LTM170W1-L01 | Samsung | 17.0 | 1280×768 |
| LTM230HT02 | Samsung | 23.0 | 1920×1080 |
| M170EG01 V5 | AUO | 17.0 | 1280×1024 |
| SVA190WX01TB | SVA-NEC | 19.0 | 1440×900 |
