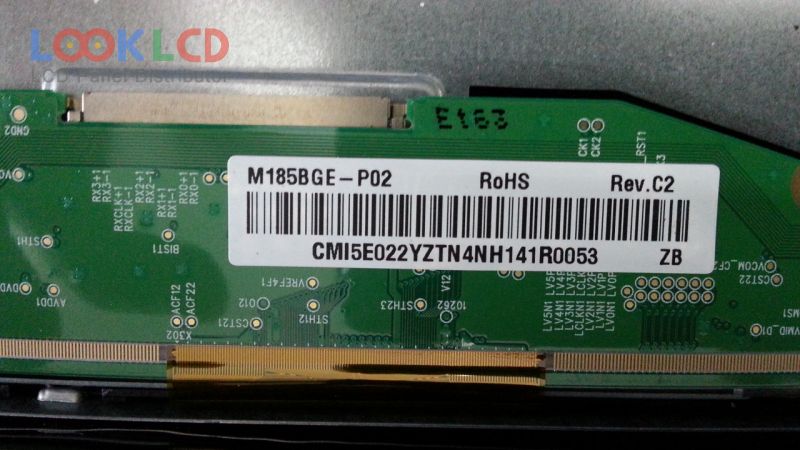

| Varenummer | M185BGE-P02 |
| Mærke | Innolux |
| Størrelse | 18.5 |
| Ansøgning | DMPC |
| Løsning | 1366×768 |
| Sammensætning | CELL |
| Lysstyrke | 0 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | No B/L |
| Interface | LVDS |
| panel mærke | CHIMEI INNOLUX |
| panel model | M185BGE-P02 |
| paneltype | a-Si TFT-LCD , CELL |
| panelstørrelse | 18.5 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 409.8×230.4 mm |
| omrids | 420.65×241.25 mm |
| overflade | Antiglare (Haze 25%), Hard coating (3H) |
| glas dybde | 0.50+0.50 mm |
| transmissivitet | 6.6% (Typ.)(with Polarizer) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 1.5/3.5 (Typ.)(Tr/Td) |
| synsvinkel | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| signal interface | LVDS (1 ch, 8-bit), 30 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | DMPC |
