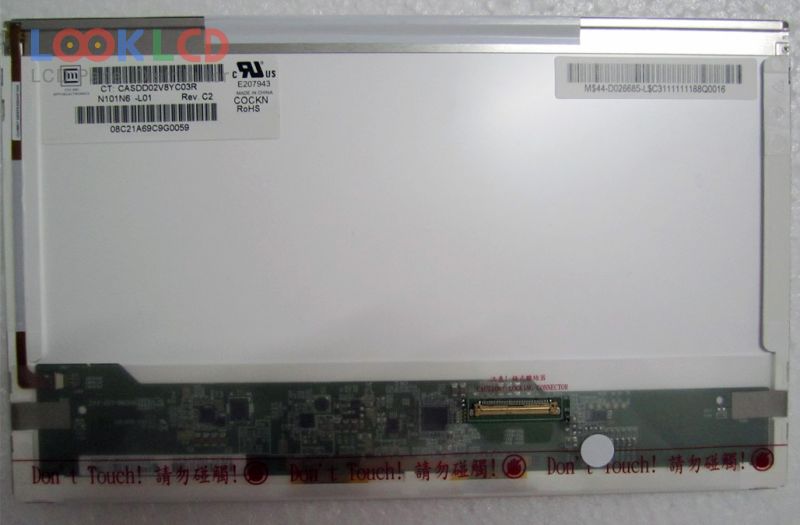

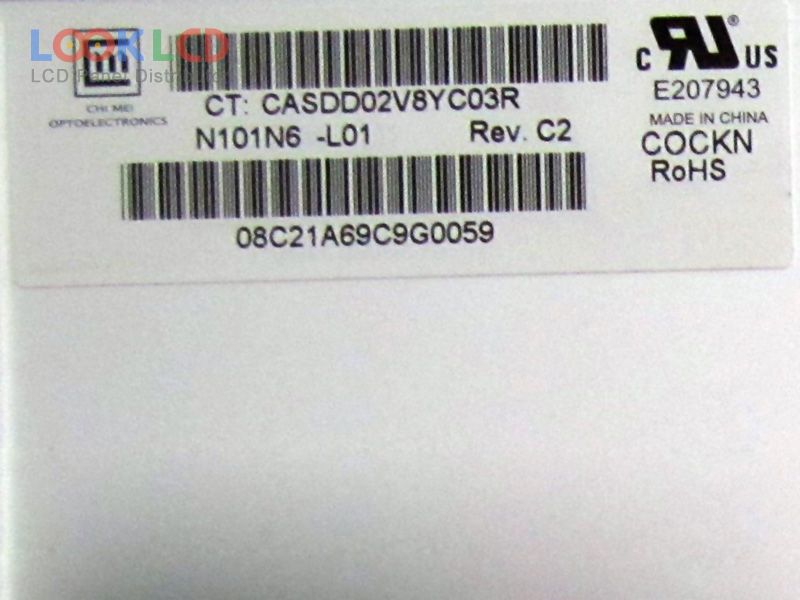

| Varenummer | N101N6-L01 |
| Mærke | Innolux |
| Størrelse | 10.1 |
| Ansøgning | NOPC |
| Løsning | 1024×576 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | CMO |
| panel model | N101N6-L01 5 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.1 inch |
| løsning | 1024(RGB)×576 , WSVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 222.72×125.28 mm |
| omrids | 235×143×5.2 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 3/7 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 9S3PWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NOPC |
| B101AW02 V0 | AUO | 10.1 | 1024×600 |
| B101AW06 V1 HW0A | AUO | 10.1 | 1024×600 |
| CLAA101WB03 | CPT | 10.1 | 1366×768 |
| HSD100IFW1-A00 | HannStar | 10.1 | 1024×600 |
| LP101WH4-SLA3 | LG Display | 10.1 | 1366×768 |
| LP101WH4-SLA6 | LG Display | 10.1 | 1366×768 |
| LP101WS1-TLB3 | LG Display | 10.1 | 1024×576 |
| N101N6-L01 | Innolux | 10.1 | 1024×576 |
| N101N6-L02 | Innolux | 10.1 | 1024×576 |
| TM101JDHP01 | Tianma | 10.1 | 1280×800 |
| A089SW01 V1 | AUO | 8.9 | 1024×600 |
| B101AW06 V1 HW1A | AUO | 10.1 | 1024×600 |
| B116XTN02.3 HW0A | AUO | 11.6 | 1366×768 |
| B116XW05 V0 | AUO | 11.6 | 1366×768 |
| BA101WS1-100 | BOE | 10.1 | 1024×600 |
| HT089WX1-100 | HYDIS | 8.9 | 1280×768 |
| LP101WS1-TLB2 | LG Display | 10.1 | 1024×576 |
| M101NWT2 R2 | IVO | 10.1 | 1024×600 |
| N101L6-L0D | Innolux | 10.1 | 1024×600 |
| N116BGE-L42 | Innolux | 11.6 | 1366×768 |
