| Varenummer | N133I6-L10 |
| Mærke | Innolux |
| Størrelse | 13.3 |
| Ansøgning | NBPC |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 345 |
| CR | 700:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | CMO |
| panel model | N133I6-L10 8 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 13.3 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 286.08×178.8 mm |
| omrids | 307.4×203.2×3.75 mm |
| form stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| overflade | Glare (Haze 0%), Hard coating (3H) |
| lysstyrke | 345 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 3/7 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/55/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDWithout Driver |

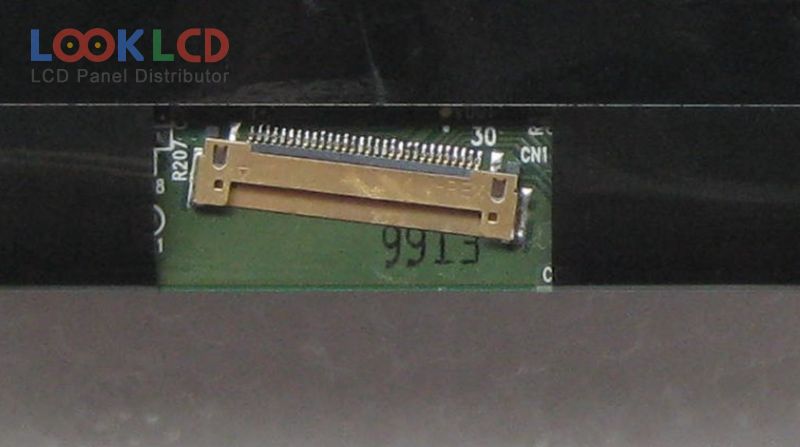

| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| CLAA133UA03 | CPT | 13.3 | 1600×900 |
| LP133WH2-TLHA | LG Display | 13.3 | 1366×768 |
| LTN133AT05-S02 | Samsung | 13.3 | 1280×800 |
| N133BGE-EB1 | Innolux | 13.3 | 1366×768 |
| N133I1-L01 | Innolux | 13.3 | 1280×800 |
| N133I5-L01 | Innolux | 13.3 | 1280×800 |
| N133I6-L01 | Innolux | 13.3 | 1280×800 |
| N133I6-L09 | Innolux | 13.3 | 1280×800 |
| N133I6-L10 | Innolux | 13.3 | 1280×800 |
| N133I7-L01 | Innolux | 13.3 | 1280×800 |
| CLAA121UA01CW | CPT | 12.1 | 1600×900 |
| CLAA154WB05AN | CPT | 15.4 | 1280×800 |
| LQ106K1LA02 | SHARP | 10.6 | 1280×768 |
| LTM10C349 | TOSHIBA | 10.4 | 800×600 |
| LTM10C353 | TOSHIBA | 10.0 | 1280×600 |
| LTN133AT01-001 | Samsung | 13.3 | 1280×800 |
| N121IB-L05 Rev.C1 | Innolux | 12.1 | 1280×800 |
| N140BGE-L22 | Innolux | 14.0 | 1366×768 |
| N141C3-L02 | Innolux | 14.1 | 1440×900 |
| N156BGK-E33 | Innolux | 15.6 | 1366×768 |
