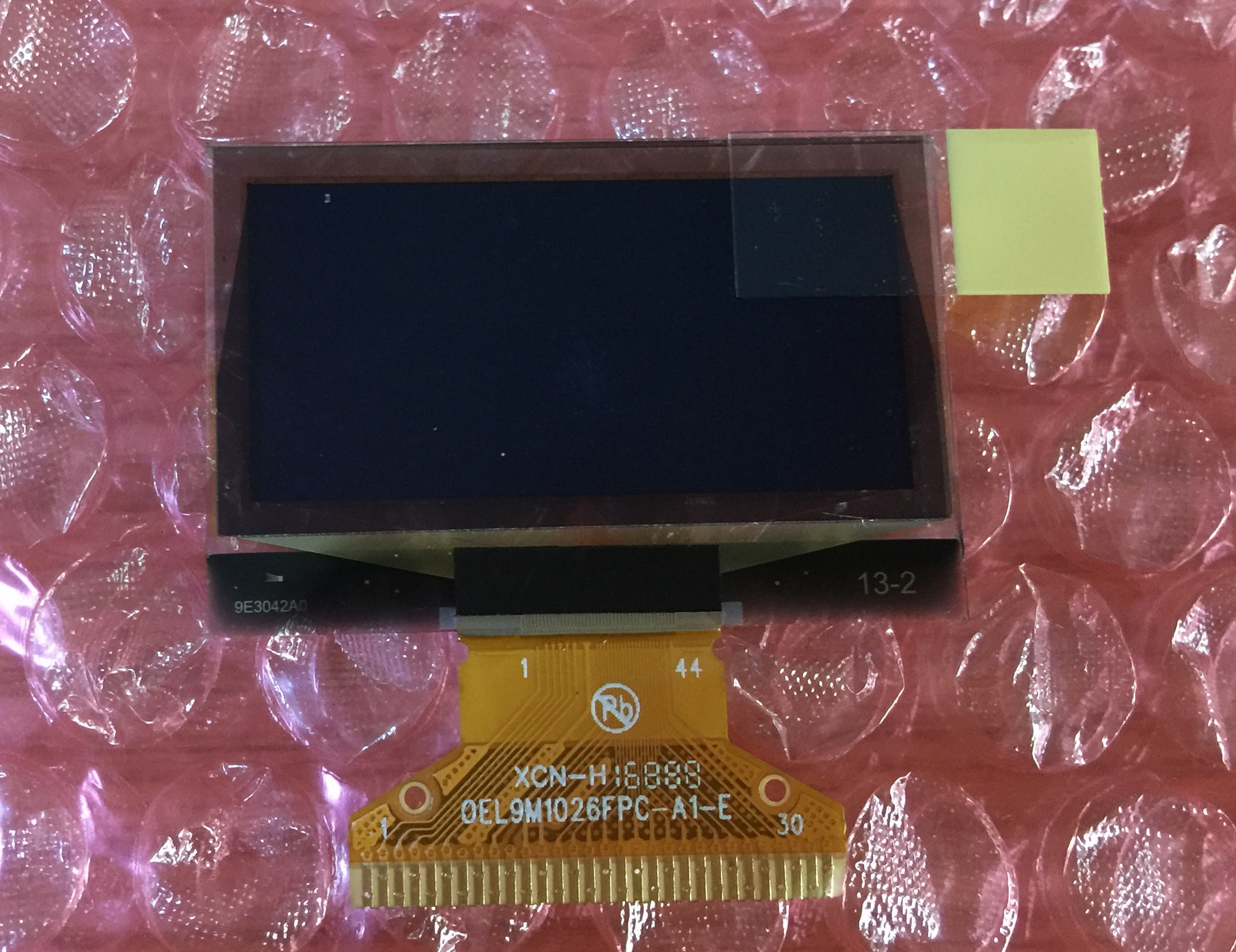

| Varenummer | OEL9M1026-W-E |
| Mærke | TRULY |
| Størrelse | 1.3 |
| Ansøgning | Wearable MP3 PMP |
| Løsning | 128×64 |
| Sammensætning | PM-OLED, OLED |
| Lysstyrke | |
| CR | 10000:1 |
| Farver | Mono(White) |
| Baggrundsbelysning | self |
| Interface | 8-bit |
| mærke | TRULY |
| model | OEL9M1026-W-E |
| diagonal størrelse | 1.3 inch |
| type | PM-OLED, OLED |
| pixel format | 128×64 110PPI |
| konfiguration | Rectangle |
| aktivt område | 29.42(H)×14.7(V) mm |
| omrids dim. | 34.5(H)×23(V) ×1.55(D) mm |
| bezel område | 31.42(H)×16.7(V) mm |
| behandling | - |
| luminans | 116 cd/m² (Typ.) |
| kontrastforhold | 10000:1 (Min.) (TM) |
| visningsretning | Symmetry |
| responstid | 0.02/0.02 (Max.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Min.) |
| driftstilstand | - |
| støtte farve | Mono(White) |
| lyskilde | self , 20K hours |
| vægt | 3.00g (Typ.) |
| designet til | Wearable MP3 PMP |
| billedhastighed | 100Hz |
| berøringspanel | Without |
| d-ic detalje | COG Built-in SH1106G |
| interface type | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C , 30 pins FPC |
| Strømforsyning | 1.65/3.5V (Typ./Max.)(VDD1) |
| miljø | Operating Temperature: -40 ~ 70 °C ; Storage Temperature: -40 ~ 80 °C |
