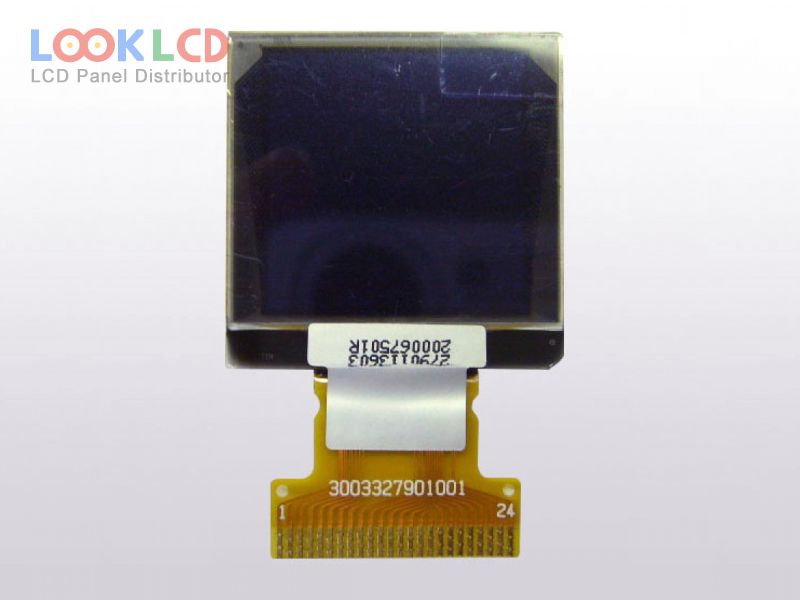

| Varenummer | RGC11096096YR000 |
| Mærke | RiTdisplay |
| Størrelse | 1.1 |
| Ansøgning | IA |
| Løsning | 96×96 |
| Sammensætning | OLED |
| Lysstyrke | 80 |
| CR | 2000:1 |
| Farver | Mono(Yellow) |
| Baggrundsbelysning | self |
| Interface | CPU/SPI/I²C |
| panel mærke | RiTdisplay |
| panel model | RGC11096096YR000 |
| paneltype | PM-OLED , OLED |
| panelstørrelse | 1.1 inch |
| løsning | 96×96 |
| aktivt område | 20.14×20.14 mm |
| omrids | 27×27×1.71 mm |
| overflade | Antiglare |
| lysstyrke | 80 cd/m² (Typ.) |
| kontrastforhold | 2000 : 1 (Min.) |
| vise farver | Mono(Yellow) |
| synsvinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 105Hz |
| driver ic | COG Built-in SSD1327 |
| signal interface | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 24 pins |
| indgangsspænding | 2.5/3.5/13.0V (Typ.)(VDD/VCI/VCC) |
| Ansøgning | IA |
