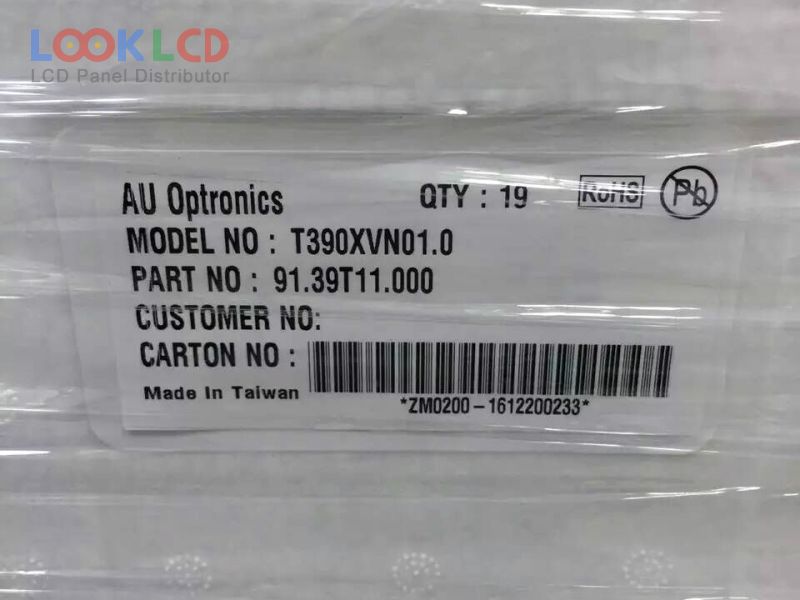

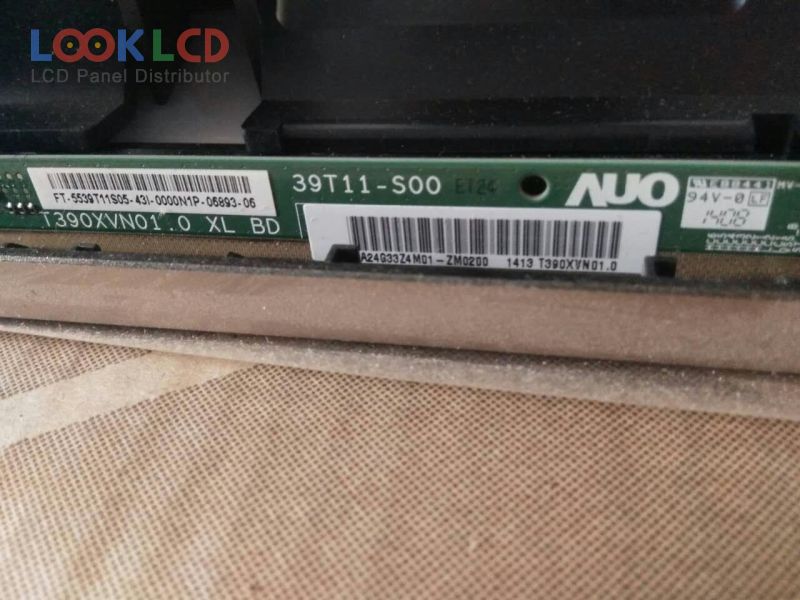

| Varenummer | T390XVN01.0 CELL |
| Mærke | AUO |
| Størrelse | 39 |
| Ansøgning | LCTV |
| Løsning | 1366×768 |
| Sammensætning | CELL |
| Lysstyrke | 0 |
| CR | 5000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | No B/L |
| Interface | LVDS |
| panel mærke | AUO |
| panel model | T390XVN01.0 CELL |
| paneltype | a-Si TFT-LCD , CELL |
| panelstørrelse | 39 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | AMVA, Normally Black, Transmissive |
| aktivt område | 853.409×479.808 mm |
| omrids | 868.72×492.83 mm |
| overflade | Antiglare (Haze 2%), Hard coating (3H) |
| glas dybde | 0.50+0.50 mm |
| transmissivitet | 8.0% (Typ.)(with Polarizer) |
| kontrastforhold | 5000:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 6.5 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| signal interface | LVDS (1 ch, 8-bit), 30 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | LCTV |
| LC170WXL-SAA1 | LG Display | 17.0 | 1366×768 |
| LC320WXN-SAC1 | LG Display | 31.5 | 1366×768 |
| LK315T3LA57 | SHARP | 31.5 | 1366×768 |
| LSC460HN03-W | Samsung | 46 | 1920×1080 |
| LTA400HM01 | Samsung | 40 | 1920×1080 |
| LTF320AP08 | Samsung | 31.5 | 1366×768 |
| ST2751A01-4 | CSOT | 27.5 | 1366×768 |
| T260XW04 V5 | AUO | 26.0 | 1366×768 |
| T315XW04 V0 | AUO | 31.5 | 1366×768 |
| T320XVN01.0 CELL | AUO | 31.5 | 1366×768 |
