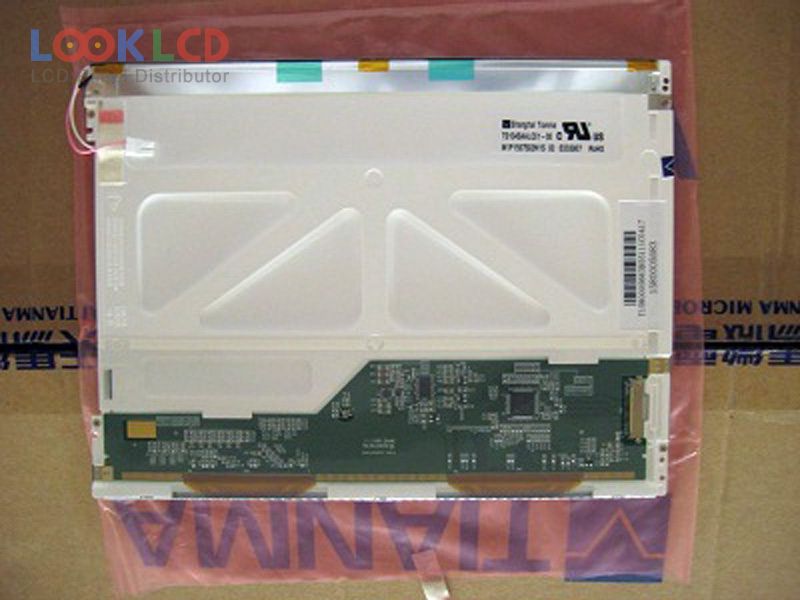

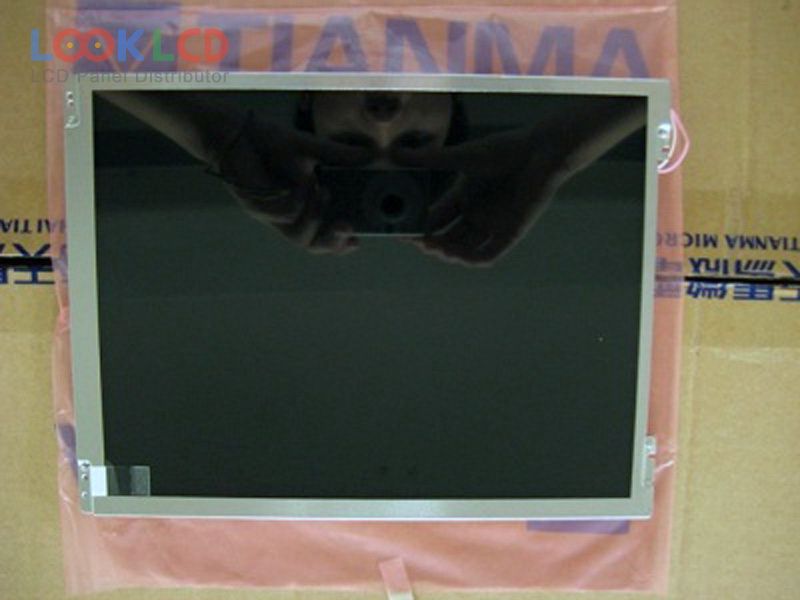

| Varenummer | TM104SCH02 |
| Mærke | Tianma |
| Størrelse | 10.4 |
| Ansøgning | IA |
| Løsning | 800×600 |
| Sammensætning | LCM |
| Lysstyrke | 230 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | TIANMA |
| panel model | TM104SCH02 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.4 inch |
| løsning | 800(RGB)×600 , SVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 211.2×158.4 mm |
| omrids | 236×176.9 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 230 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 10/15 (Typ.)(Tr/Td) |
| synsvinkel | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
