| Varenummer | TX41D97VC1HAA |
| Mærke | KOE |
| Størrelse | 16.1 |
| Ansøgning | NBPC |
| Løsning | 1400×1050 |
| Sammensætning | LCM |
| Lysstyrke | 330 |
| CR | 600:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |

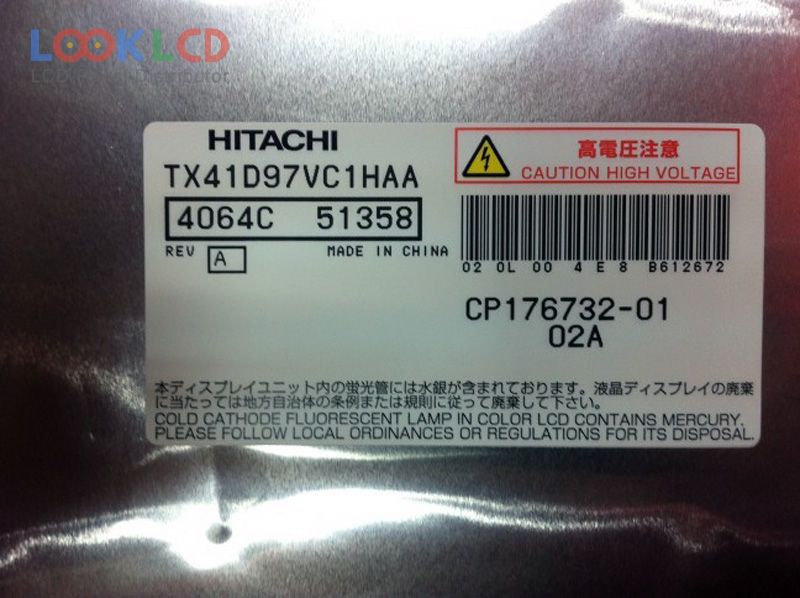

| panel mærke | HITACHI |
| panel model | TX41D97VC1HAA |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 16.1 inch |
| løsning | 1400(RGB)×1050 , SXGA+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 326.55×244.913 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%), Hard coating (2H), Reflection 1.2% (Typ.) |
| lysstyrke | 330 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 30/20 (Typ.)(Tr/Td) |
| synsvinkel | 65/65/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |

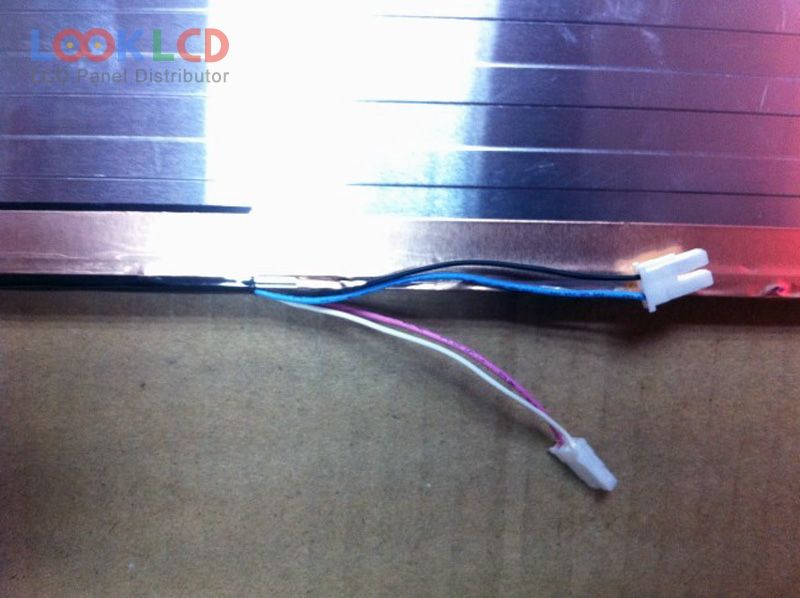

| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
