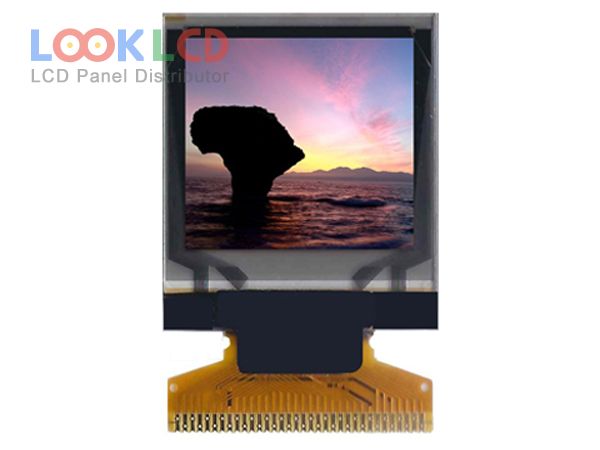

| Varenummer | UG-9696TDDCG02 |
| Mærke | WiseChip |
| Størrelse | 1.1 |
| Ansøgning | IA |
| Løsning | 96×96 |
| Sammensætning | OLED |
| Lysstyrke | 100 |
| CR | 10000:1 |
| Farver | 65K |
| Baggrundsbelysning | self |
| Interface | CPU/SPI |
| panel mærke | WiseChip |
| panel model | UG-9696TDDCG02 |
| paneltype | PM-OLED , OLED |
| panelstørrelse | 1.1 inch |
| løsning | 96(RGB)×96 |
| aktivt område | 19.852×19.852 mm |
| omrids | 25.9×30.1×1.4 mm |
| overflade | |
| lysstyrke | 100 cd/m² (Typ.) |
| kontrastforhold | 10000 : 1 (Typ.) |
| vise farver | 65K |
| synsvinkel | |
| driver ic | COG Built-in SEPS114A |
| signal interface | 8-bit 6800/8080 parallel, 4-wire SPI, 34 pins |
| indgangsspænding | 2.8/2.8/12.0V (Typ.)(VDD/VDDIO/VCC) |
| rohs: | |
