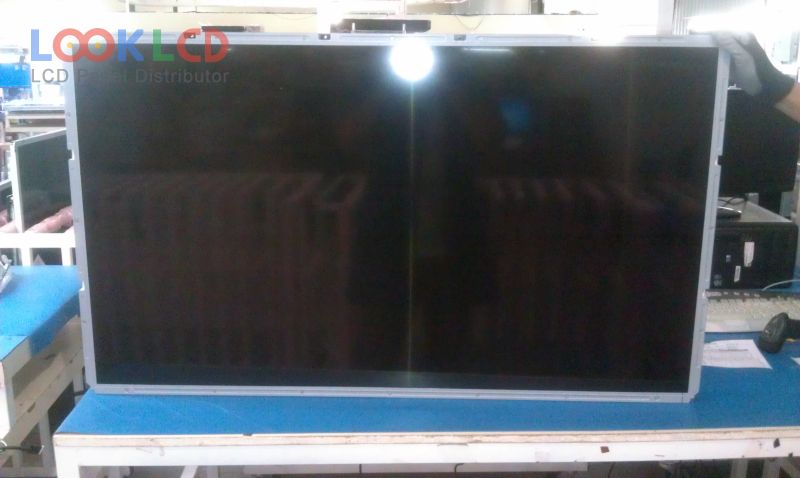

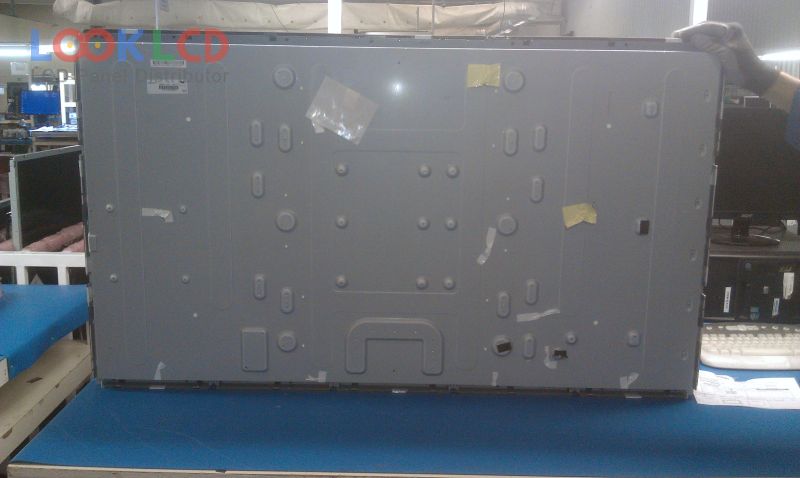

| Varenummer | V500HJ1-L01 |
| Mærke | Innolux |
| Størrelse | 50 |
| Ansøgning | LCTV |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 4000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |

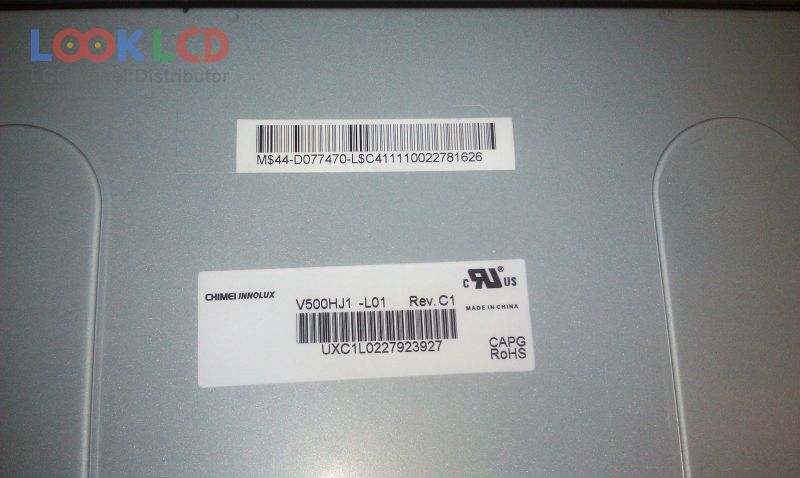

| panel mærke | CHIMEI INNOLUX |
| panel model | V500HJ1-L01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 50 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | Super MVA, Normally Black, Transmissive |
| aktivt område | 1095.84×616.41 mm |
| omrids | 1142.84×663.41 mm |
| overflade | Antiglare (Haze 3.5%), Hard coating (3H) |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 4000:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193172% |
| responstid | 8 (Typ.)(G to G) |
| synsvinkel | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | CCFLEmbedded (Balance board) |
| signal interface | LVDS (2 ch, 8-bit), 51 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | LCTV |
