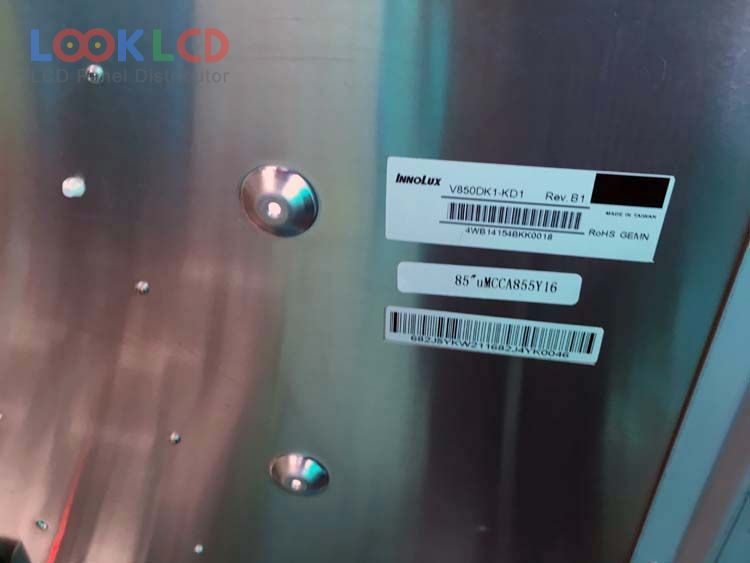

| Varenummer | V850DK1-KD1 Rev.B1 |
| Mærke | Innolux |
| Størrelse | 85 |
| Ansøgning | LCTV |
| Løsning | 3840×2160 |
| Sammensætning | LCM |
| Lysstyrke | 500 |
| CR | 3000:1 |
| Farver | 1.07B |
| Baggrundsbelysning | WLED |
| Interface | V-by-One |
| panel mærke | INNOLUX |
| panel model | V850DK1-KD1 Rev.B1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 85 inch |
| løsning | 3840(RGB)×2160 , UHD |
| visningstilstand | Super MVA, Normally Black, Transmissive |
| aktivt område | 1872×1053 mm |
| omrids | 1902.6×1083.6×53.8 mm |
| overflade | Antiglare (Haze 0.5%) |
| lysstyrke | 500 cd/m² (Typ.) |
| kontrastforhold | 3000:1 (Typ.) |
| vise farver | 1.07B (8-bit + Hi-FRC), CIE1931100% |
| responstid | 6.5 (Typ.)(G to G) |
| synsvinkel | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| frekvens | 120Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | V-by-One 16 lane, 97 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | LCTV |
