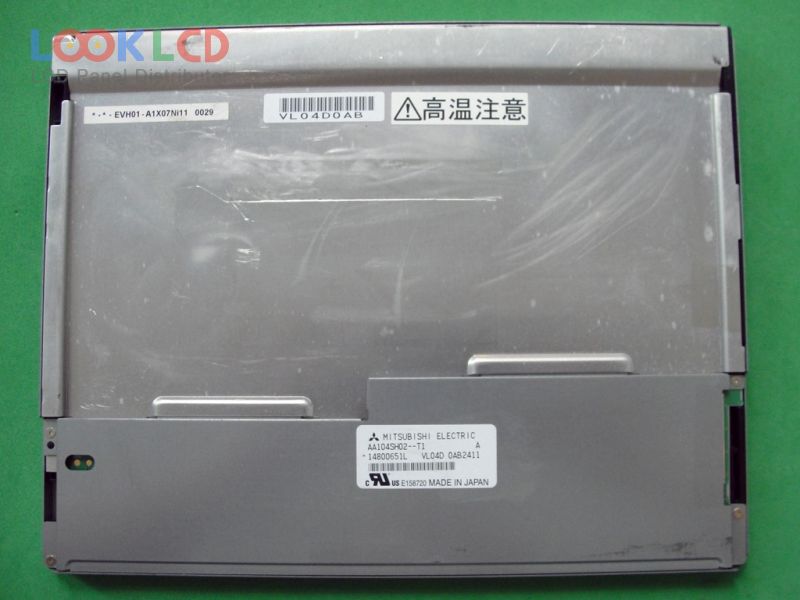

| Varenummer | AA104SH02--T1 |
| Mærke | Mitsubishi |
| Størrelse | 10.4 |
| Ansøgning | IA |
| Løsning | 800×600 |
| Sammensætning | LCM |
| Lysstyrke | 560 |
| CR | 660:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | Mitsubishi |
| panel model | AA104SH02--T1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.4 inch |
| løsning | 800(RGB)×600 , SVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 211.2×158.4 mm |
| omrids | 230×180.2×12.6 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 560 cd/m² (Typ.) |
| kontrastforhold | 660:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 8-bit), CIE193140% |
| responstid | 4/12 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 stringsWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
| AA104SG01 | Mitsubishi | 10.4 | 800×600 |
| AA104SG04 | Mitsubishi | 10.4 | 800×600 |
| AA104SH02 | Mitsubishi | 10.4 | 800×600 |
| AA104SH02--T1 | Mitsubishi | 10.4 | 800×600 |
| AA104SL02-DE1 | Mitsubishi | 10.4 | 800×600 |
| BA104S01-100 | BOE | 10.4 | 800×600 |
| DLH1095 | LiteMax | 10.4 | 1024×768 |
| LM64C350 | SHARP | 10.4 | 640×480 |
| LQ104V1DG33 | SHARP | 10.4 | 640×480 |
| TX26D17VM2BAA | KOE | 10.4 | 640×480 |
| DLH1095 | LiteMax | 10.4 | 1024×768 |
| EW24B00GLY | EDT | 5.2 | 240×64 |
| G150XG02 V0 | AUO | 15.0 | 1024×768 |
| G240HW01 V0 | AUO | 24.0 | 1920×1080 |
| LM8V301 | SHARP | 7.7 | 640×480 |
| LMG7420PLFC | KOE | 5.1 | 240×128 |
| LQ10D368 | SHARP | 10.4 | 640×480 |
| LQ121S1DG31 | SHARP | 12.1 | 800×600 |
| M084GNS1 R1 | IVO | 8.4 | 800×600 |
| OEL9M0078-B-E | Other | 1.45 | 132×16 |
