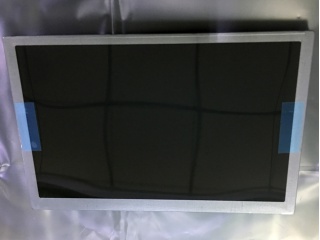

| Varenummer | AT070MP11 |
| Mærke | Mitsubishi |
| Størrelse | 7.0 |
| Ansøgning | Industrial Outdoor H |
| Løsning | 800×480 |
| Sammensætning | LCM , a-Si TFT-LCD |
| Lysstyrke | |
| CR | 1000:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| fabrikant | Mitsubishi |
| modelnavn | AT070MP11 |
| skærmstørrelse | 7.0 inch |
| skærmtype | LCM , a-Si TFT-LCD |
| pixel antal | 800(RGB)×480 (WVGA) 133PPI |
| arrangement | RGB Vertical Stripe |
| aktivt område (mm) | 152.4 × 91.44 (H×V) |
| omrids (mm) | 169.8 × 109.7 × 9.4 (H×V×D) |
| rammeareal (mm) | 154.4 × 93.5 (H×V) |
| behandling | Antiglare, Hard coating (3H) |
| luminans | 1300 cd/m² (Typ.) |
| kontrastforhold | 1000 : 1 (Typ.) (TM) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10) |
| respons | 4/12 (Typ.)(Tr/Td) ms |
| god udsigt kl | Symmetry |
| arbejdstilstand | SWV, Normally Black, Transmissive |
| farvedybde | 262K/16.7M 50% NTSC |
| baggrundsbelysning | WLED , 100K hours , No Driver |
| masse | 200g |
| anvendes til | Industrial Outdoor High Brightness Automotive Display |
| opdateringshastighed | 60Hz |
| berøringsskærm | Without |
| signaltype | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| spændingsforsyning | 3.3V (Typ.) |
| max. vurderinger | Storage Temp.: -40 ~ 85 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 6.8G (66.64 m/s²) |
