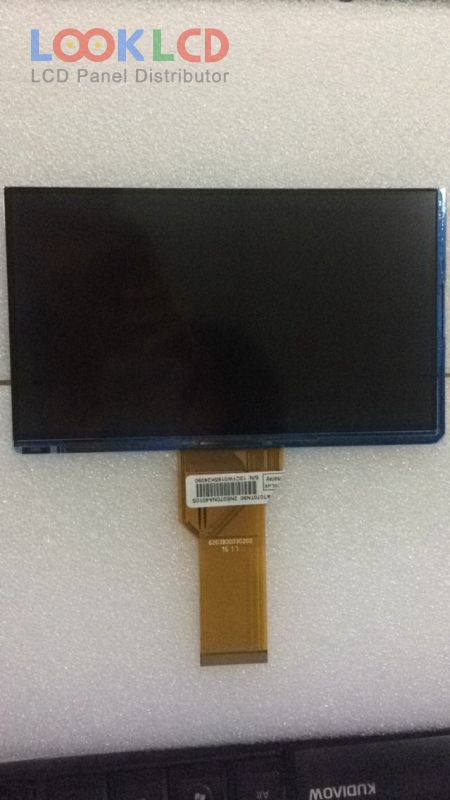

| Varenummer | AT070TN90 |
| Mærke | Innolux |
| Størrelse | 7.0 |
| Ansøgning | DPF |
| Løsning | 800×480 |
| Sammensætning | CELL |
| Lysstyrke | 0 |
| CR | 500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | No B/L |
| Interface | TTL |
| panel mærke | INNOLUX |
| panel model | AT070TN90 |
| paneltype | a-Si TFT-LCD , CELL |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 154.08×85.92 mm |
| omrids | 162.53×96.62 mm |
| overflade | Antiglare |
| glas dybde | 0.50+0.50 mm |
| transmissivitet | 5.11% (Typ.)(with Polarizer) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 10/15 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| signal interface | Parallel RGB (1 ch, 8-bit), 50 pins |
| indgangsspænding | 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Ansøgning | DPF |
