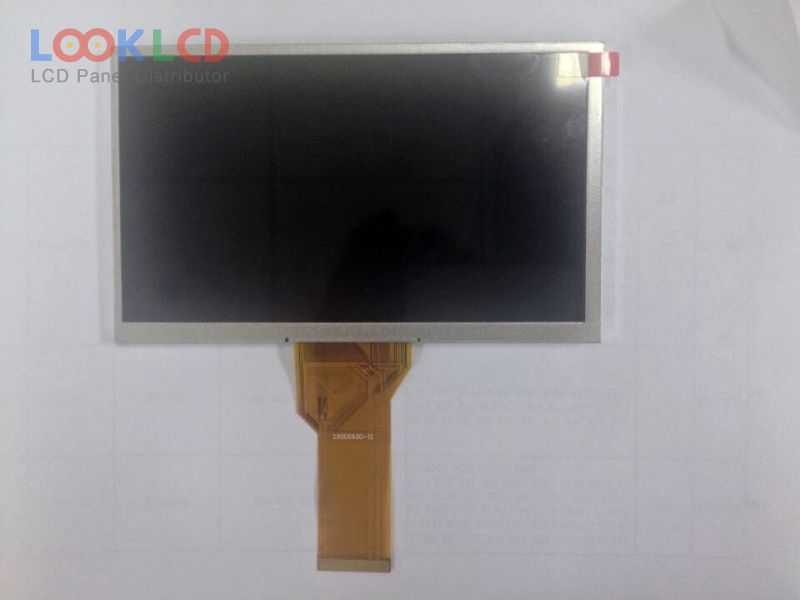

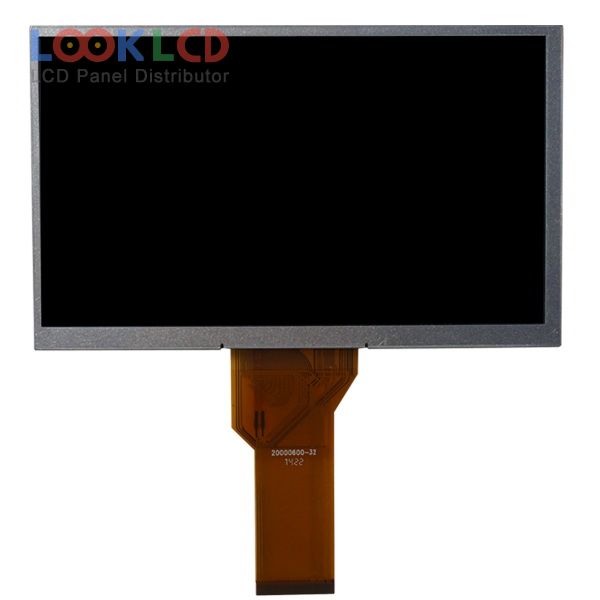

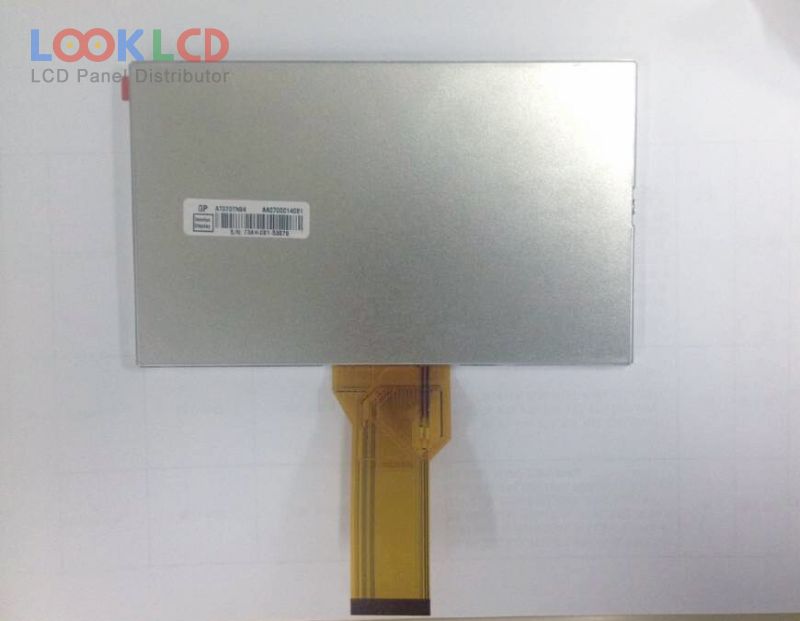

| Varenummer | AT070TN94 |
| Mærke | Innolux |
| Størrelse | 7.0 |
| Ansøgning | CNS |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 500:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | INNOLUX |
| panel model | AT070TN94 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 154.08×85.92 mm |
| omrids | 164.9×100×6 mm |
| overflade | Antiglare |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 6-bit + Dithering), CIE193150% |
| responstid | 10/15 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 3S9PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6/8-bit), 50 pins |
| indgangsspænding | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Ansøgning | CNS |
| AT070TN01 | Innolux | 7.0 | 480×234 |
| AT070TN07 V.A | Innolux | 7.0 | 480×234 |
| AT070TN07 V.D | Innolux | 7.0 | 480×234 |
| AT070TN83 | Innolux | 7.0 | 800×480 |
| AT070TN90 | Innolux | 7.0 | 800×480 |
| AT070TN92 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.4 | Innolux | 7.0 | 800×480 |
| AT070TN93 | Innolux | 7.0 | 800×480 |
| AT070TNA2 V.1 | Innolux | 7.0 | 1024×600 |
| A070VW05 V0 | AUO | 7.0 | 800×480 |
| AM-480272-043D | Other | 4.3 | 480×272 |
| CLAA080LG02AW | CPT | 8.0 | 800×480 |
| DJ080PA-01C | Innolux | 8.0 | |
| LB070WQ4-TM06 | LG Display | 7.0 | 480×234 |
| LQ038Q5DR01 | SHARP | 3.8 | 320×240 |
| LQ042T5DZ01A | SHARP | 4.2 | 480×272 |
| LQ080Y5DG02 | SHARP | 8.0 | 800×480 |
| M050SWN1 R2 | IVO | 5.0 | 480×234 |
| YXD101301000-60 | SEBO | 10.1 | 1024×600 |
