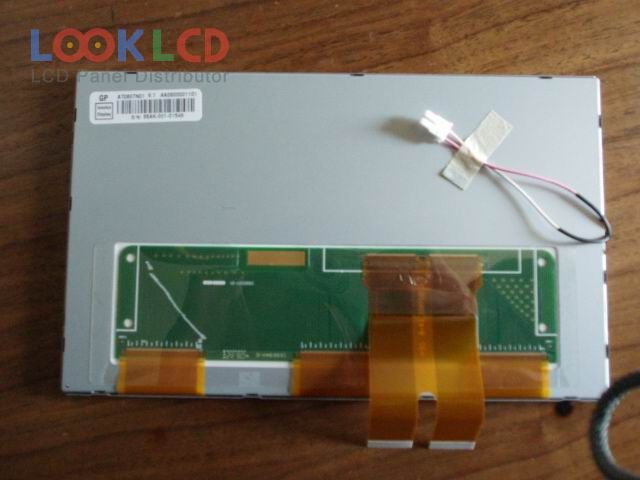

| Varenummer | AT080TN01 |
| Mærke | Innolux |
| Størrelse | 8.0 |
| Ansøgning | DPF |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | INNOLUX |
| panel model | AT080TN01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 176.64×99.36 mm |
| omrids | 192.8×116.9×6.7 mm |
| overflade | Antiglare |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 15/20 (Typ.)(Tr/Td) |
| synsvinkel | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 60 pins |
| indgangsspænding | 3.3/10.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| rohs: | |
