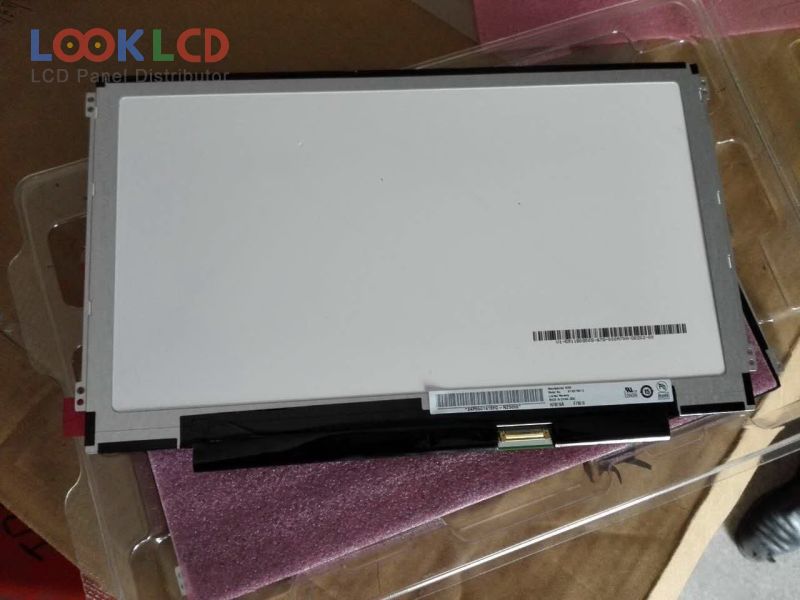

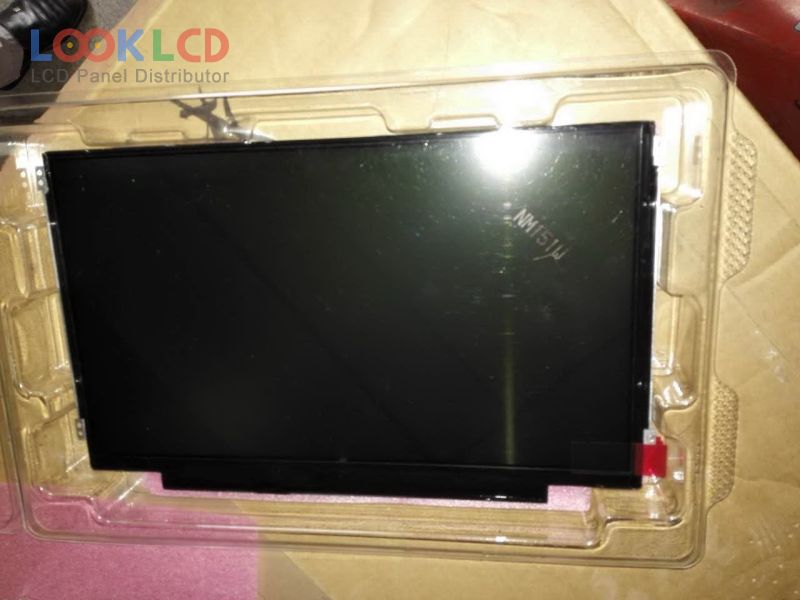

| Varenummer | B116XTN01.0 HW5A |
| Mærke | AUO |
| Størrelse | 11.6 |
| Ansøgning | NOPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| panel mærke | AUO |
| panel model | B116XTN01.0 HW5A |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 11.6 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 256.125×144 mm |
| omrids | 278×168×3.6 mm |
| form stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 3/5 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | eDP (1 Lane), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NOPC |
