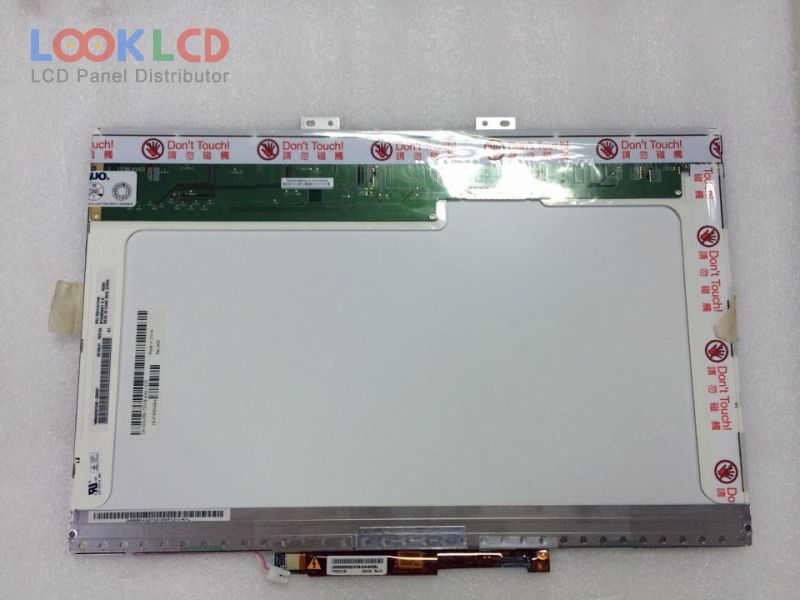

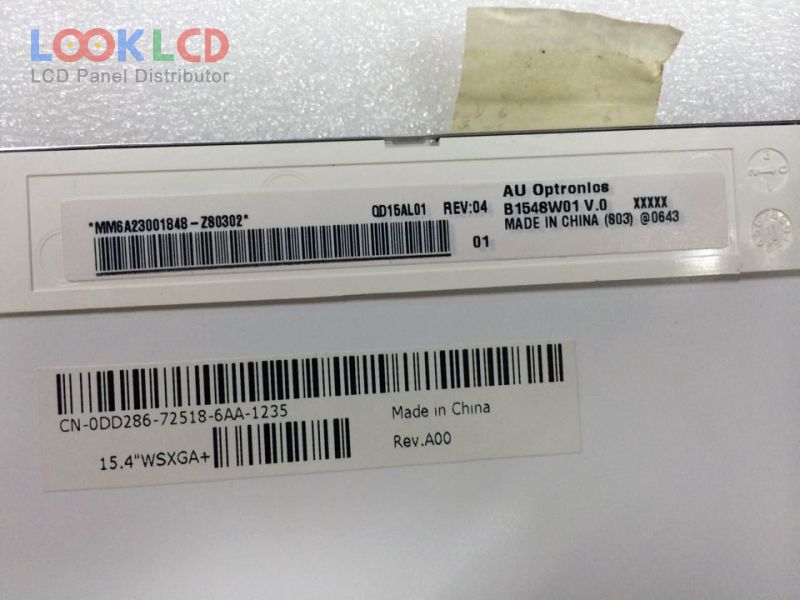

| Varenummer | B154SW01 V0 |
| Mærke | AUO |
| Størrelse | 15.4 |
| Ansøgning | NBPC |
| Løsning | 1680×1050 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | AUO |
| panel model | B154SW01 V0 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.4 inch |
| løsning | 1680(RGB)×1050 , WSXGA+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 331.38×207.11 mm |
| overflade | Antiglare |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFL |
| signal interface | LVDS (2 ch, 6-bit) |
| Ansøgning | NBPC |
| B140RTN03.0 | AUO | 14.0 | 1600×900 |
| B141EW05 V0 | AUO | 14.1 | 1280×800 |
| HB140FH1-301 | BOE | 14.0 | 1920×1080 |
| LT121SS-105 | Samsung | 12.1 | 800×600 |
| LTN140AT20-401 | Samsung | 14.0 | 1366×768 |
| LTN154U1-L02 | Samsung | 15.4 | 1920×1200 |
| LTN154X3-L06-6 | Samsung | 15.4 | 1280×800 |
| LTN156AT06-001 | Samsung | 15.6 | 1366×768 |
| LTN170BT07-G01 | Samsung | 17.0 | 1440×900 |
| LTN184KT02-T01 | Samsung | 18.4 | 1680×945 |
