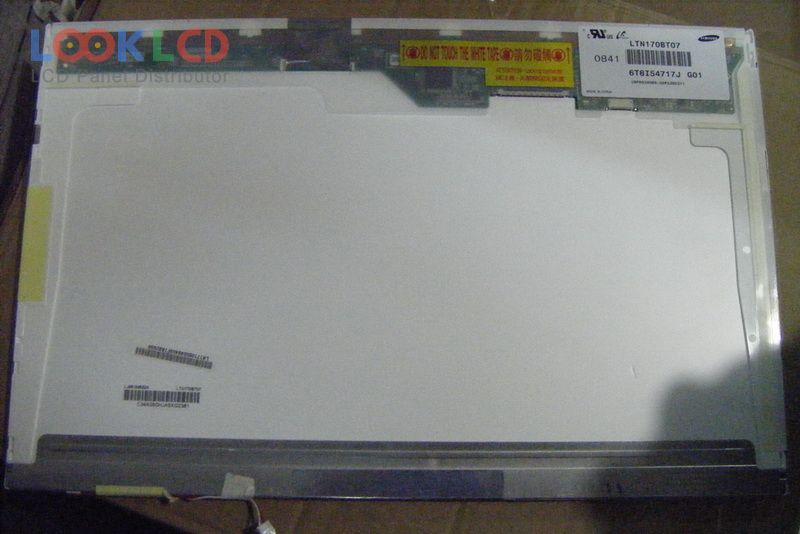

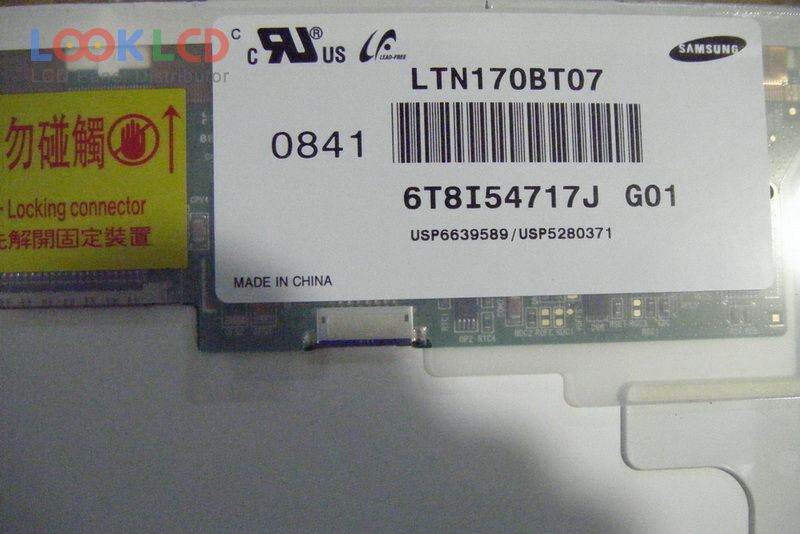

| Varenummer | LTN170BT07-G01 |
| Mærke | Samsung |
| Størrelse | 17.0 |
| Ansøgning | NBPC |
| Løsning | 1440×900 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTN170BT07-G01 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 17.0 inch |
| løsning | 1440(RGB)×900 , WXGA+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 367.2×229.5 mm |
| omrids | 382×244.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 8 (Typ.)(Tr+Td) |
| synsvinkel | 45/45/20/25 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFL |
| signal interface | LVDS (2 ch, 6-bit) |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| LM170E01-TLBF | LG Display | 17.0 | 1280×1024 |
| LTM170EU-L21 | Samsung | 17.0 | 1280×1024 |
| LTN170BT05-G01 | Samsung | 17.0 | 1440×900 |
| LTN170BT06-G01 | Samsung | 17.0 | 1440×900 |
| LTN170BT07-G01 | Samsung | 17.0 | 1440×900 |
| LTN170BT08-G01 | Samsung | 17.0 | 1440×900 |
| LTN170BT09-001 | Samsung | 17.0 | 1440×900 |
| LTN170BT10-001 | Samsung | 17.0 | 1440×900 |
| LTN170BT11-D01 | Samsung | 17.0 | 1440×900 |
| LTN170BT11-D03 | Samsung | 17.0 | 1440×900 |
| B141EW05 V5 | AUO | 14.1 | 1280×800 |
| B170UW01 V0 | AUO | 17.0 | 1920×1200 |
| HSD150PX16-A | HannStar | 15.0 | 1024×768 |
| LP121S1 | LG Display | 12.1 | 800×600 |
| LP150X09-A3K1 | LG Display | 15.0 | 1024×768 |
| LP171WU1-TLA5 | LG Display | 17.1 | 1920×1200 |
| LTD121KX4K | TOSHIBA | 12.1 | 1280×800 |
| LTN133AT15-G01 | Samsung | 13.3 | 1280×800 |
| LTN141AT16-B03 | Samsung | 14.1 | 1280×800 |
| LTN141XB-L02 | Samsung | 14.1 | 1024×768 |
