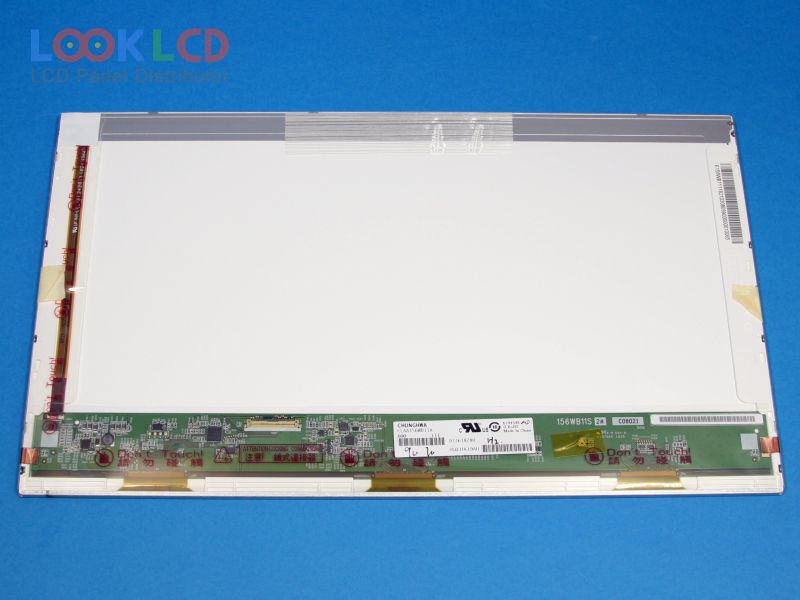

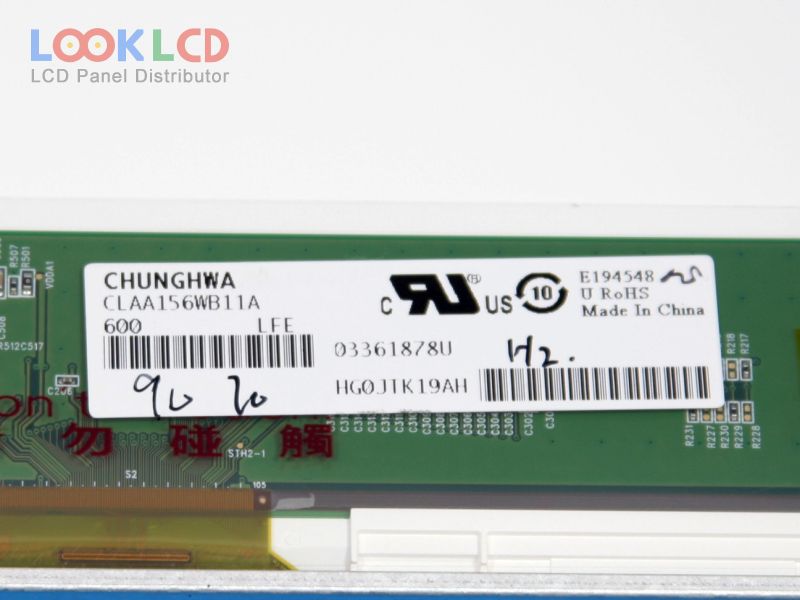

| Varenummer | CLAA156WB11A |
| Mærke | CPT |
| Størrelse | 15.6 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 600:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | CPT |
| panel model | CLAA156WB11A 16 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.6 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 344.232×193.536 mm |
| omrids | 359.3×209.5×5.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%) |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193160% |
| responstid | 3/5 (Typ.)(Tr/Td) |
| synsvinkel | 40/40/15/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| CLAA150PB03 | CPT | 15.0 | 1400×1050 |
| CLAA150XP01Q V2 | CPT | 15.0 | 1024×768 |
| CLAA150XP03 | CPT | 15.0 | 1024×768 |
| CLAA150XP06CW | CPT | 15.0 | 1024×768 |
| CLAA154WA01 | CPT | 15.4 | 1280×800 |
| CLAA154WB04N | CPT | 15.4 | 1280×800 |
| CLAA154WB05AN | CPT | 15.4 | 1280×800 |
| CLAA154WB08A | CPT | 15.4 | 1280×800 |
| CLAA154WP05A | CPT | 15.4 | 1440×900 |
| CLAA156WA01A | CPT | 15.6 | 1366×768 |
| B154EW02 V0 | AUO | 15.4 | 1280×800 |
| B156HW02 V1 | AUO | 15.6 | 1920×1080 |
| B170PW01 V1 | AUO | 17.0 | 1440×900 |
| B173RW01 V5 | AUO | 17.3 | 1600×900 |
| LP101WH1-TLA2 | LG Display | 10.1 | 1366×768 |
| LQ121X1LH73 | SHARP | 12.1 | 1024×768 |
| LTD106EWNN | TOSHIBA | 10.6 | 1280×768 |
| LTN133AT17-W01 | Samsung | 13.3 | 1366×768 |
| N121I6-L01 | Innolux | 12.1 | 1280×800 |
| N154I2-L02 | Innolux | 15.4 | 1280×800 |
