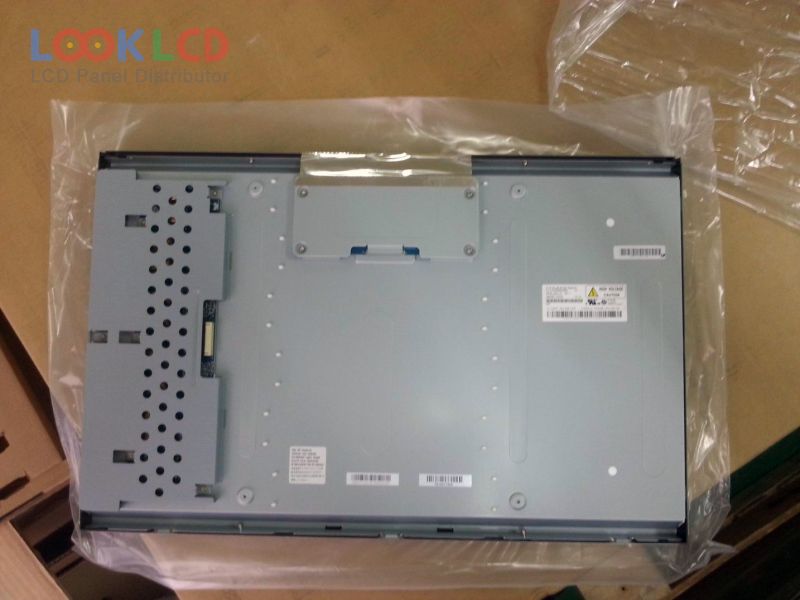

| Varenummer | CLAA260WU09 |
| Mærke | CPT |
| Størrelse | 25.5 |
| Ansøgning | DMPC |
| Løsning | 1920×1200 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | CPT |
| panel model | CLAA260WU09 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 25.5 inch |
| løsning | 1920(RGB)×1200 , WUXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 550.08×343.8 mm |
| omrids | 582×375.6 mm |
| overflade | Antiglare |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (6-bit + Hi-FRC), CIE1931100% |
| responstid | 2/3 (Typ.)(Tr/Td); 3 (Typ.)(G to G) |
| synsvinkel | 85/85/85/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6 pcsCCFLEmbedded (Inverter) |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | DMPC |
| CLAA215FA01 | CPT | 21.5 | 1920×1080 |
| CLAA215FA04 | CPT | 21.5 | 1920×1080 |
| CLAA215FA04 V4 | CPT | 21.5 | 1920×1080 |
| CLAA220WA01 | CPT | 21.6 | 1680×1050 |
| CLAA260WU09 | CPT | 25.5 | 1920×1200 |
| CLAA260WU09M | CPT | 25.5 | 1920×1200 |
| LM260WU1-SLB1 | LG Display | 25.5 | 1920×1200 |
| LM260WU2-SLA1 | LG Display | 25.5 | 1920×1200 |
| LM260WU2-SLA2 | LG Display | 25.5 | 1920×1200 |
| M260J3-L01 | Innolux | 25.5 | 1920×1200 |
| HT185WX1-300 | BOE | 18.5 | 1366×768 |
| LM215WF4-TRA1 | LG Display | 21.5 | 1920×1080 |
| LM220WE1-TLM1 | LG Display | 22.0 | 1680×1050 |
| LM270WQ1-SDE3 | LG Display | 27.0 | 2560×1440 |
| LQ181E1DW28 | SHARP | 18.1 | 1280×1024 |
| LQ181E1LW31 | SHARP | 18.1 | 1280×1024 |
| LTM170ET01 | Samsung | 17.0 | 1280×1024 |
| LTM220CS01 | Samsung | 22.0 | 1920×1200 |
| M185BGE-L23 | Innolux | 18.5 | 1366×768 |
| TD170WGCB2 | TPO | 17.0 | 1280×1024 |
