| Varenummer | COM57T5N07RSS |
| Mærke | Ortustech |
| Størrelse | 5.7 |
| Ansøgning | Industrial |
| Løsning | 640×480 |
| Sammensætning | a-Si TFT-LCD , LCM |
| Lysstyrke | |
| CR | 1000:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | Parallel |
| mærke | Ortustech |
| diagonal størrelse | 5.7 inch |
| pixel format | 640(RGB)×480 [VGA] 141PPI |
| aktivt område | 115.2(H)×86.4(V) mm |
| bezel område | - |
| luminans | 500 cd/m² (Typ.) |
| visningsretning | Symmetry |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10) |
| støtte farve | 262K 50% NTSC |
| vægt | - |
| billedhastighed | 60Hz |
| interface type | Parallel RGB (1 ch, 6-bit) Connector |
| miljø | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| model | COM57T5N07RSS |
| type | a-Si TFT-LCD , LCM |
| konfiguration | RGB Vertical Stripe |

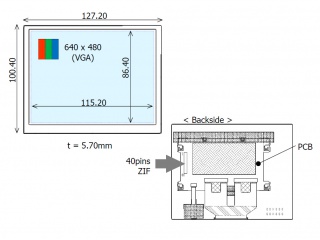

| omrids dim. | 127.2(H)×100.4(V) mm |
| behandling | Hard coating (3H) |
| kontrastforhold | 1000:1 (Typ.) (TM) |
| responstid | - |
| driftstilstand | IPS, Normally Black, Transmissive |
| lyskilde | WLED [5S3P] , 50K hours , With LED Driver |
| designet til | Industrial |
| berøringspanel | Without |
