| Varenummer | COM70H7M24ULC |
| Mærke | Ortustech |
| Størrelse | 7.0 |
| Ansøgning | Industrial Outdoor H |
| Løsning | 800×480 |
| Sammensætning | a-Si TFT-LCD, LCM |
| Lysstyrke | |
| CR | 700:13:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| mærke | Ortustech |
| model | COM70H7M24ULC |
| diagonal størrelse | 7.0 inch |
| type | a-Si TFT-LCD, LCM |
| pixel format | 800(RGB)×480 [WVGA] 133PPI |
| konfiguration | RGB Vertical Stripe |

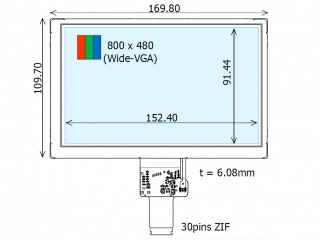

| aktivt område | 152.4(H)×91.44(V) mm |
| omrids dim. | 169.8(H)×109.7(V) ×6.11(D) mm |
| bezel område | - |
| behandling | Hard coating (3H) |
| luminans | 790 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) (TM) 3:1 (Typ.) (RF) |
| visningsretning | Symmetry |
| responstid | 60/40 (Max.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Min.)(CR≥10) |
| driftstilstand | VA, Normally Black, Transflective |
| støtte farve | 262K/16.7M 50% NTSC |
| lyskilde | WLED [8S2P] , 100K hours , W/O Driver |
| vægt | 170g (Typ.) |
| designet til | Industrial Outdoor High Brightness Automotive Display |
| billedhastighed | 60Hz |
| berøringspanel | Without |
| interface type | LVDS (1 ch, 6/8-bit) , 30 pins FPC |
| Strømforsyning | 3.3V (Typ.) |
| miljø | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 6.8G (66.64 m/s²) |
