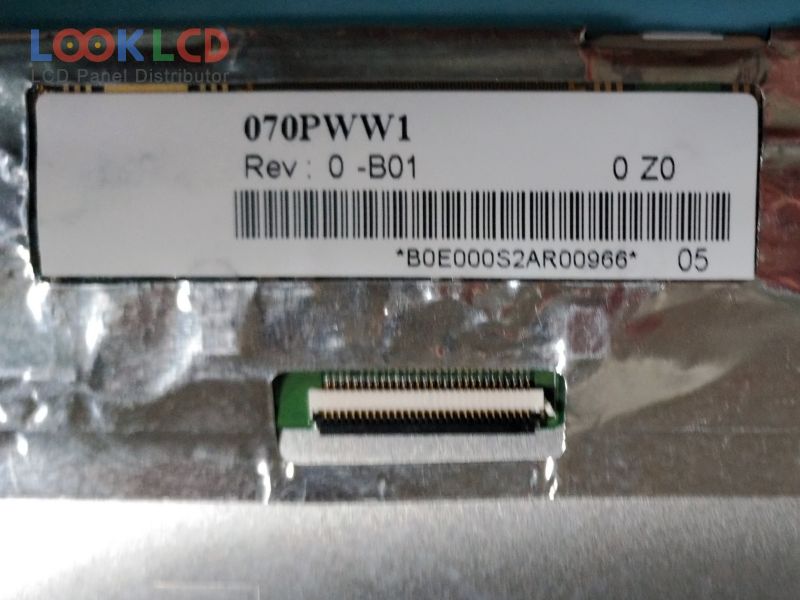

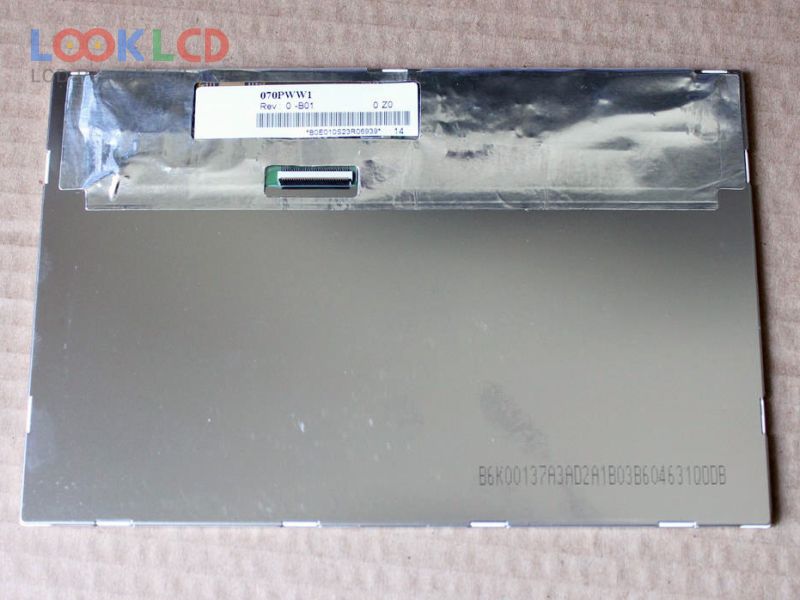

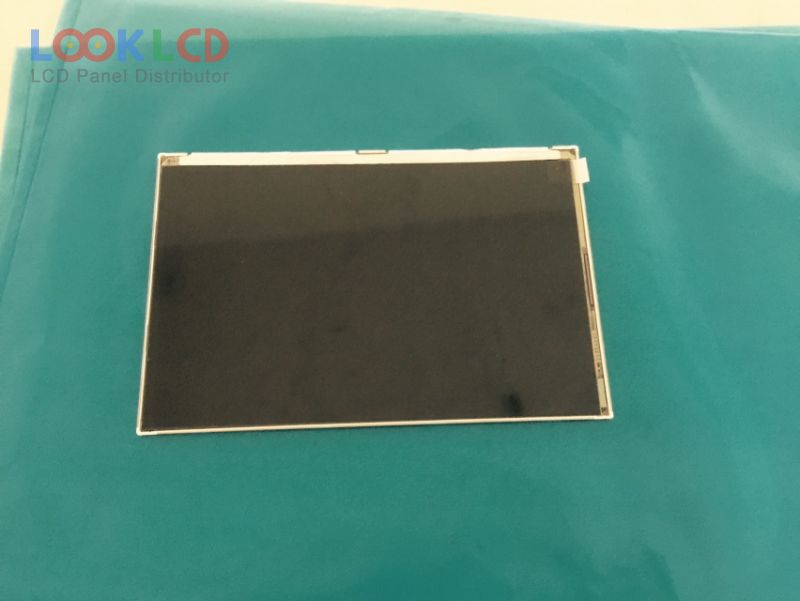

| Varenummer | HSD070PWW1-B01 |
| Mærke | HannStar |
| Størrelse | 7.0 |
| Ansøgning | UMPC |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 800:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | HannStar |
| panel model | HSD070PWW1-B01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | HS-IPS, Normally Black, Transmissive |
| aktivt område | 150.72×94.2 mm |
| omrids | 161.2×105.5×4.5 mm |
| overflade | Hard coating |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | UMPC |
