| Varenummer | COM70H7M44UTC |
| Mærke | Ortustech |
| Størrelse | 7.0 |
| Ansøgning | Industrial Outdoor H |
| Løsning | 800×480 |
| Sammensætning | LCM , a-Si TFT-LCD |
| Lysstyrke | |
| CR | 900:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | 7S2P |
| Interface | LVDS |
| fabrikant | Ortustech |
| modelnavn | COM70H7M44UTC |
| skærmstørrelse | 7.0 inch |
| skærmtype | LCM , a-Si TFT-LCD |
| pixel antal | 800(RGB)×480 (WVGA) 133PPI |
| arrangement | RGB Vertical Stripe |
| aktivt område (mm) | 152.4 × 91.44 (H×V) |

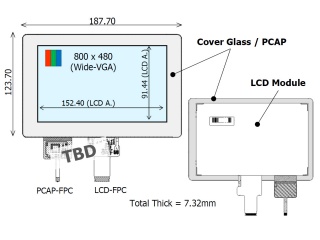

| omrids (mm) | 187.7 × 123.7 (H×V×D) |
| rammeareal (mm) | - |
| behandling | Hard coating (3H) |
| luminans | 900 cd/m² (Typ.) |
| kontrastforhold | 900 : 1 (Typ.) (TM) |
| synsvinkel | 80/80/80/80 (Min.)(CR≥10) |
| respons | 50 (Typ.)(Tr+Tf) ms |
| god udsigt kl | Symmetry |
| arbejdstilstand | VA, Normally Black, Transflective |
| farvedybde | 262K/16.7M 50% NTSC |
| baggrundsbelysning | 7S2P WLED , 50K hours , No Driver |
| masse | TBD |
| anvendes til | Industrial Outdoor High Brightness |
| opdateringshastighed | 60Hz |
| berøringsskærm | PCAP |
| signaltype | LVDS (1 ch, 6/8-bit) , 30 pins FPC |
| spændingsforsyning | 3.3V (Typ.) |
| max. vurderinger | Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 6.8G (66.64 m/s²) |
