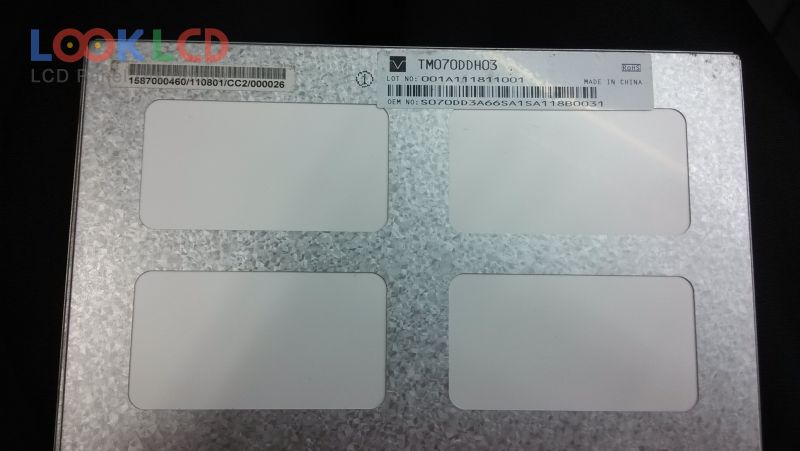

| Varenummer | TM070DDH03 |
| Mærke | Tianma |
| Størrelse | 7.0 |
| Ansøgning | MP4 |
| Løsning | 1024×600 |
| Sammensætning | LCM |
| Lysstyrke | 320 |
| CR | 500:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | TIANMA |
| panel model | TM070DDH03 4 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 1024(RGB)×600 , WSVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 153.6×90 mm |
| omrids | 165.75×105.39×3.7 mm |
| overflade | Antiglare |
| lysstyrke | 320 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| responstid | 20 (Typ.)(Tr+Td) |
| synsvinkel | 75/75/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S6PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 40 pins |
| indgangsspænding | 3.3/11.0/20.0/-6.8V (Typ.)(VDD/AVDD/VGH/VGL) |
| Ansøgning | MP4 |
| TM070DDH02 | Tianma | 7.0 | 1024×600 |
| TM070DDH07 | Tianma | 7.0 | 1024×600 |
| TM070DDH08 | Tianma | 7.0 | 1024×600 |
| TM070DDH09 | Tianma | 7.0 | 1024×600 |
| TM070JDHP01-00 | Tianma | 7.0 | 1280×800 |
| TM070RBH10 | Tianma | 7.0 | 800×480 |
| TM070RDH01 | Tianma | 7.0 | 800×480 |
| TM070RDH10 | Tianma | 7.0 | 800×480 |
| TM070SDH03 | Tianma | 7.0 | 800×600 |
| TM070WA-22L06 | SANYO | 7.0 | 480×234 |
| A070VW04 V0 | AUO | 7.0 | 800×480 |
| BA070WS1-401 | BOE | 7.0 | 1024×600 |
| CLAA089NA0FCW | CPT | 8.9 | 1024×600 |
| DLC0700MIG | Other | 7.0 | 800×480 |
| ED070NA-01N | Innolux | 7.0 | 1024×600 |
| EJ070NA-01J | Innolux | 7.0 | 1024×600 |
| HSD089IFW1-D00 | HannStar | 8.9 | 1024×600 |
| LMS430HF19 | Samsung | 4.3 | 480×272 |
| LMS700KF05 | Samsung | 7.0 | 800×480 |
| LMS700KF21 | Samsung | 7.0 | 800×480 |
