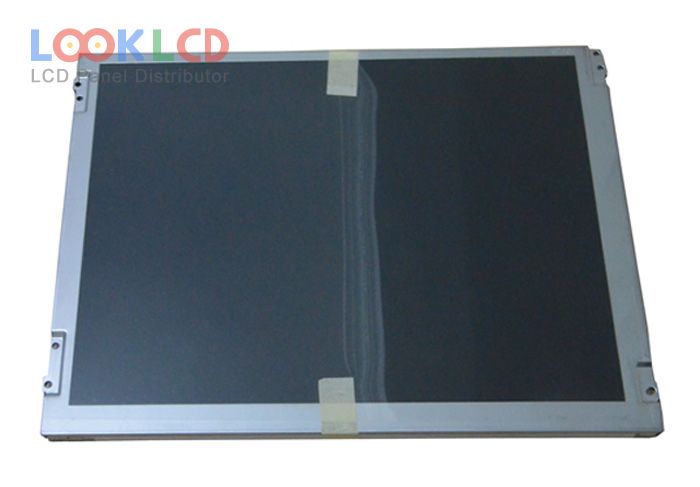

| Varenummer | G121STN01.0 |
| Mærke | AUO |
| Størrelse | 12.1 |
| Ansøgning | IA |
| Løsning | 800×600 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 600:1 |
| Farver | 262K/16.2M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | AUO |
| panel model | G121STN01.0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.1 inch |
| løsning | 800(RGB)×600 , SVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 246×184.5 mm |
| omrids | 279×209×9.5 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 262K/16.2M (6-bit / 6-bit + FRC), CIE193155% |
| responstid | 25/10 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/65/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 9S2PWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6/8-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
| AA121SL09 | Mitsubishi | 12.1 | 800×600 |
| G121S1-L01 | Innolux | 12.1 | 800×600 |
| G121S1-L02 | Innolux | 12.1 | 800×600 |
| G121SN01 V0 | AUO | 12.1 | 800×600 |
| G121SN01 V1 | AUO | 12.1 | 800×600 |
| G121SN01 V3 | AUO | 12.1 | 800×600 |
| G121SN01 V4 | AUO | 12.1 | 800×600 |
| G121STN01.0 | AUO | 12.1 | 800×600 |
| LB121S03-TL02 | LG Display | 12.1 | 800×600 |
| LM12S471 | SHARP | 12.1 | 800×600 |
| AA084SC01 | Mitsubishi | 8.4 | 800×600 |
| COM50H5125XLC | ORTUSTECH | 5.0 | 320×240 |
| G150XTN02.0 | AUO | 15.0 | 1024×768 |
| G190ETN01.4 | AUO | 19.0 | 1280×1024 |
| HLD0909-020010 | Hosiden | 9.0 | 640×480 |
| LM081HB1T01B | SHARP | 8.1 | 640×240 |
| LQ150X1LG11 | SHARP | 15.0 | 1024×768 |
| TX23D12VM0CAA | KOE | 9.0 | 800×480 |
| UG-2864KSWMG01 | WiseChip | 1.54 | 128×64 |
| UG-5664ALBDF01 | WiseChip | 2.8 | 256×64 |
