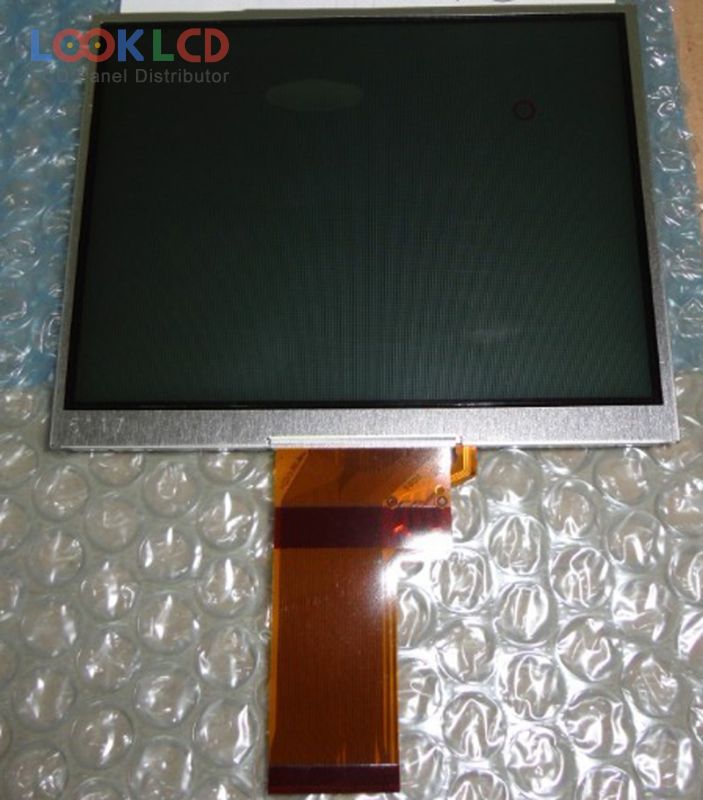

| Varenummer | COM50H5125XLC |
| Mærke | ORTUSTECH |
| Størrelse | 5.0 |
| Ansøgning | IA |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 400:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | ORTUSTECH |
| panel model | COM50H5125XLC |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.0 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | TN, Normally White, Transflective |
| aktivt område | 100.8×75.6 mm |
| omrids | 108.3×87.55×3.2 mm |
| overflade | Hard coating (3H) |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.)(Transmissive)12:1 (Typ.)(Reflective) |
| vise farver | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| responstid | 40/60 (Max.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S2PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6/8-bit), 67 pins |
| indgangsspænding | 3.0V (Typ.) |
| Ansøgning | IA |
