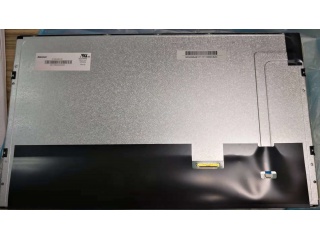

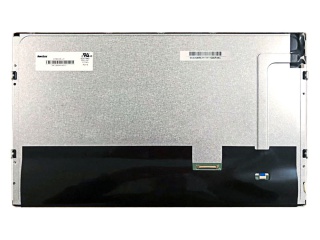

| Varenummer | G156HCE-L01 |
| Mærke | Innolux |
| Størrelse | 15.6 |
| Ansøgning | Industrial |
| Løsning | 1920×1080 |
| Sammensætning | a-Si TFT-LCD, LCM |
| Lysstyrke | |
| CR | 800:1 |
| Farver | 16.2M |
| Baggrundsbelysning | WLED |
| Interface | |
| mærke | Innolux |
| model | G156HCE-L01 |
| diagonal størrelse | 15.6 inch |
| type | a-Si TFT-LCD, LCM |
| pixel format | 1920(RGB)×1080 [FHD] 141PPI |
| konfiguration | RGB Vertical Stripe |
| aktivt område | 344.16(H)×193.59(V) mm |
| omrids dim. | 363.8(H)×215.98(V) ×9.6(D) mm |
| bezel område | 347.06(H)×196.49(V) mm |
| behandling | Antiglare, Hard coating (3H) |
| luminans | 450 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) (TM) |
| visningsretning | Symmetry |
| responstid | 13/12 (Typ.)(Tr/Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10) |
| driftstilstand | AAS, Normally Black, Transmissive |
| støtte farve | 16.2M 73% NTSC |
| lyskilde | WLED , 50K hours , With LED Driver |
| vægt | 1.06/1.10Kgs (Typ./Max.) |
| designet til | Industrial |
| billedhastighed | 60Hz |
| berøringspanel | Without |
| Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C |
