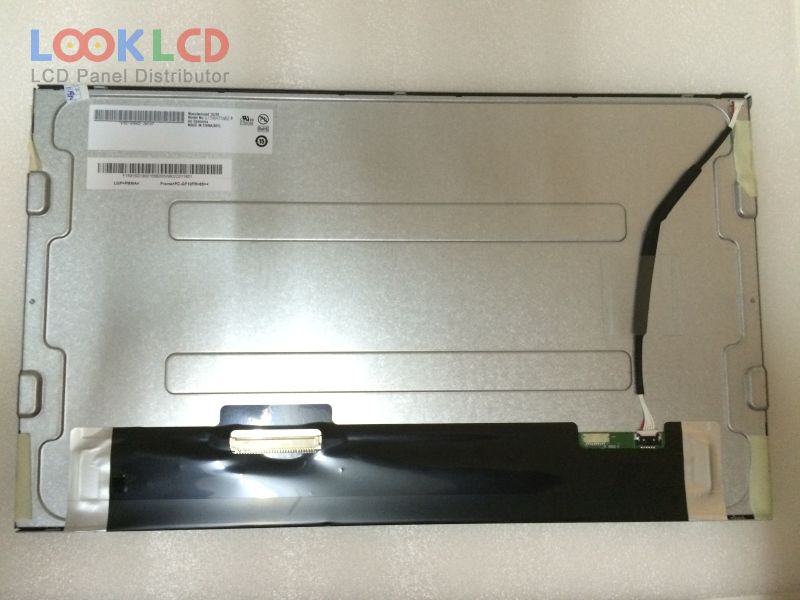

| Varenummer | G156HTN02.0 |
| Mærke | AUO |
| Størrelse | 15.6 |
| Ansøgning | IA |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 700:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | AUO |
| panel model | G156HTN02.0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.6 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 344.16×193.59 mm |
| omrids | 363.8×215.9×9.8 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193172% |
| responstid | 8 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
| B156HW02 V1 | AUO | 15.6 | 1920×1080 |
| G156HAN01.0 | AUO | 15.6 | 1920×1080 |
| G156HTD01.0 | AUO | 15.6 | 1920×1080 |
| G156HTN01.0 | AUO | 15.6 | 1920×1080 |
| G156HTN02.0 | AUO | 15.6 | 1920×1080 |
| G156HTN02.1 | AUO | 15.6 | 1920×1080 |
| LP156WF4-SLB1 | LG Display | 15.6 | 1920×1080 |
| LP156WHU-TPD1 | LG Display | 15.6 | 1366×768 |
| LQ156T3LW02 | SHARP | 15.6 | 1366×768 |
| AA104VB04 | Mitsubishi | 10.4 | 640×480 |
| AA121XN01 | Mitsubishi | 12.1 | 1024×768 |
| AA150XT01 | Mitsubishi | 15.0 | 1024×768 |
| DMF6104NF-FW | Kyocera | 5.3 | 256×128 |
| G150XTN03.2 | AUO | 15.0 | 1024×768 |
| G260JJE-L07 | Innolux | 25.5 | 1920×1200 |
| LB104V03-TD01 | LG Display | 10.4 | 640×480 |
| MD640.400-50 | FINLUX | 9.1 | 640×400 |
| NL3224AC35-10 | NLT | 5.5 | 320×240 |
| UG-2864KSYMG01 | WiseChip | 1.54 | 128×64 |
